MultiTool Pro

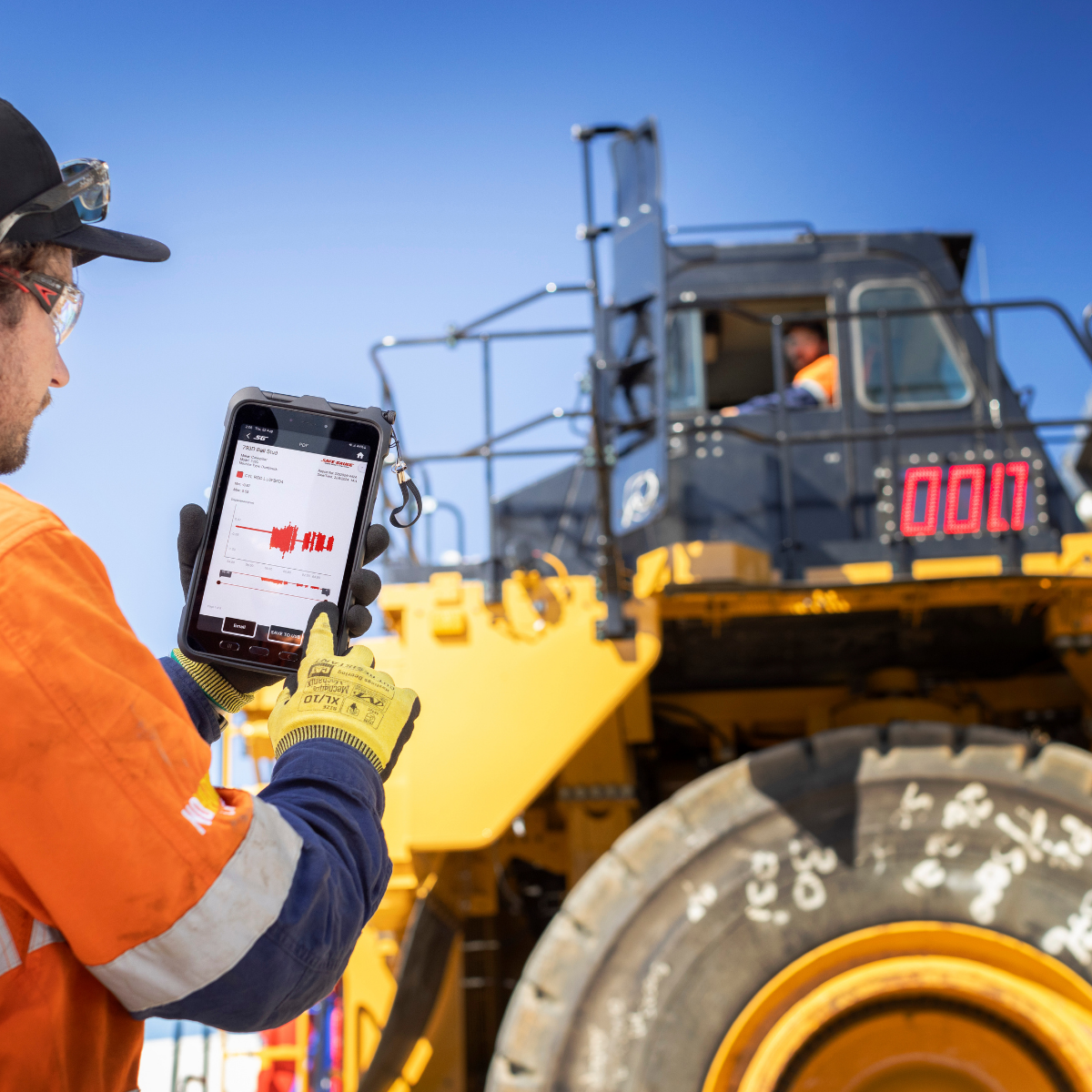

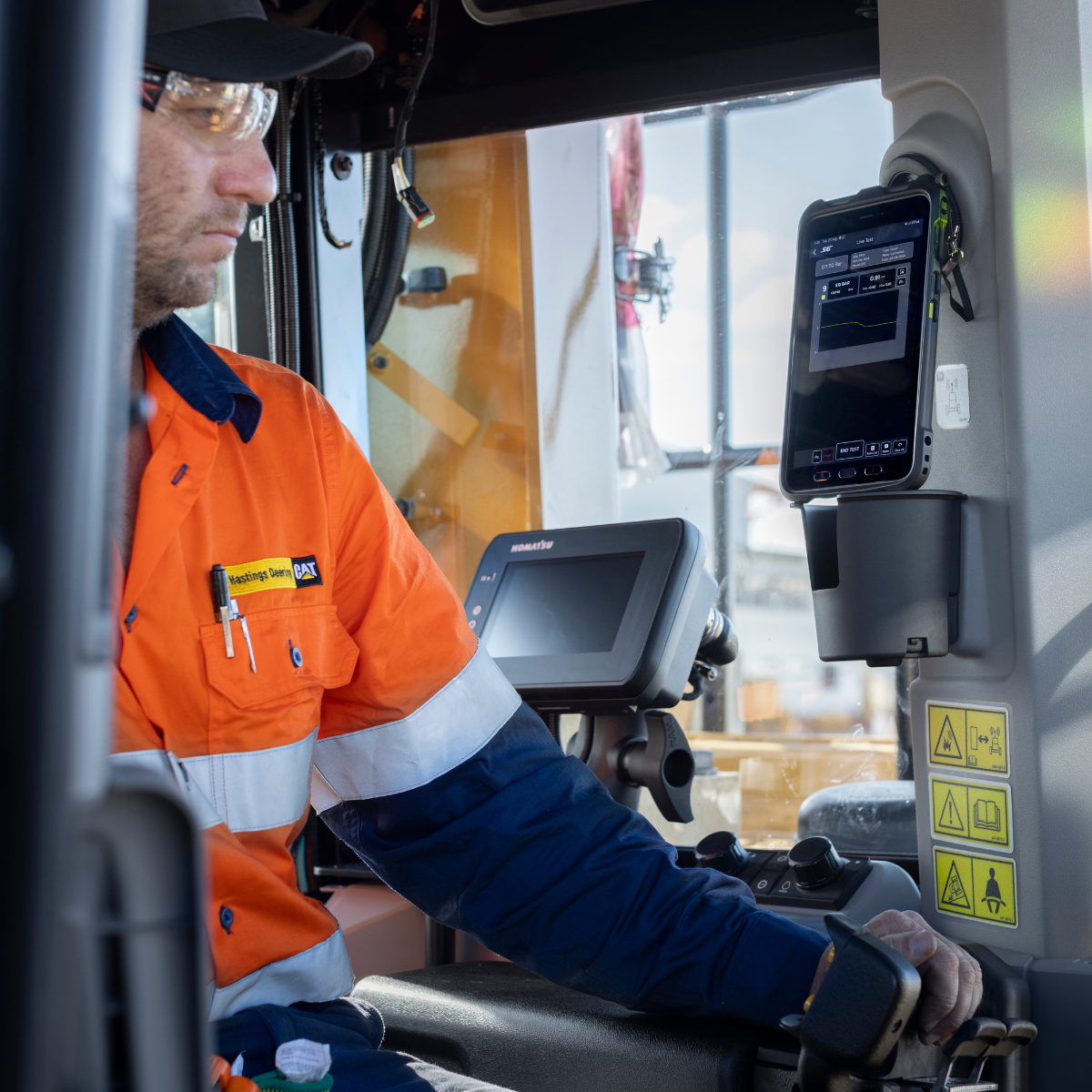

The new SafeGauge MultiTool Pro takes Elimination of Live Work (ELW) to the next level - allowing maintenance technicians to seamlessly connect and monitor up to 12 SafeGauge sensors simultaneously, from up to 100m (328ft) away.

The intuitive ‘plug-and-play’ touchscreen interface comes packed with a host of new features, including data-logging and graphing, with the ability to generate comprehensive reports that can be exported and shared via in-built cloud connectivity.

Features

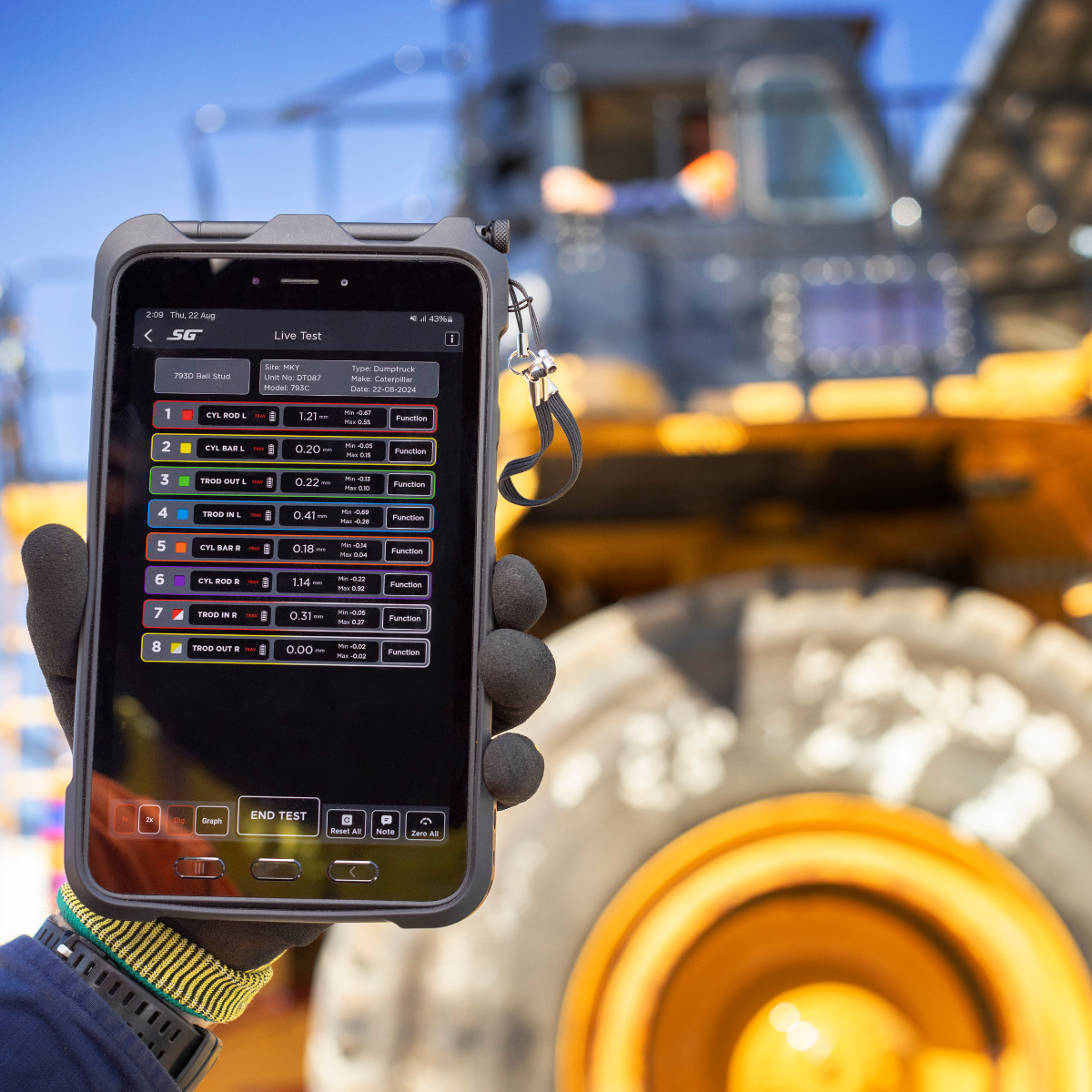

  • Connect up to 12 SafeGauge sensors simultaneously

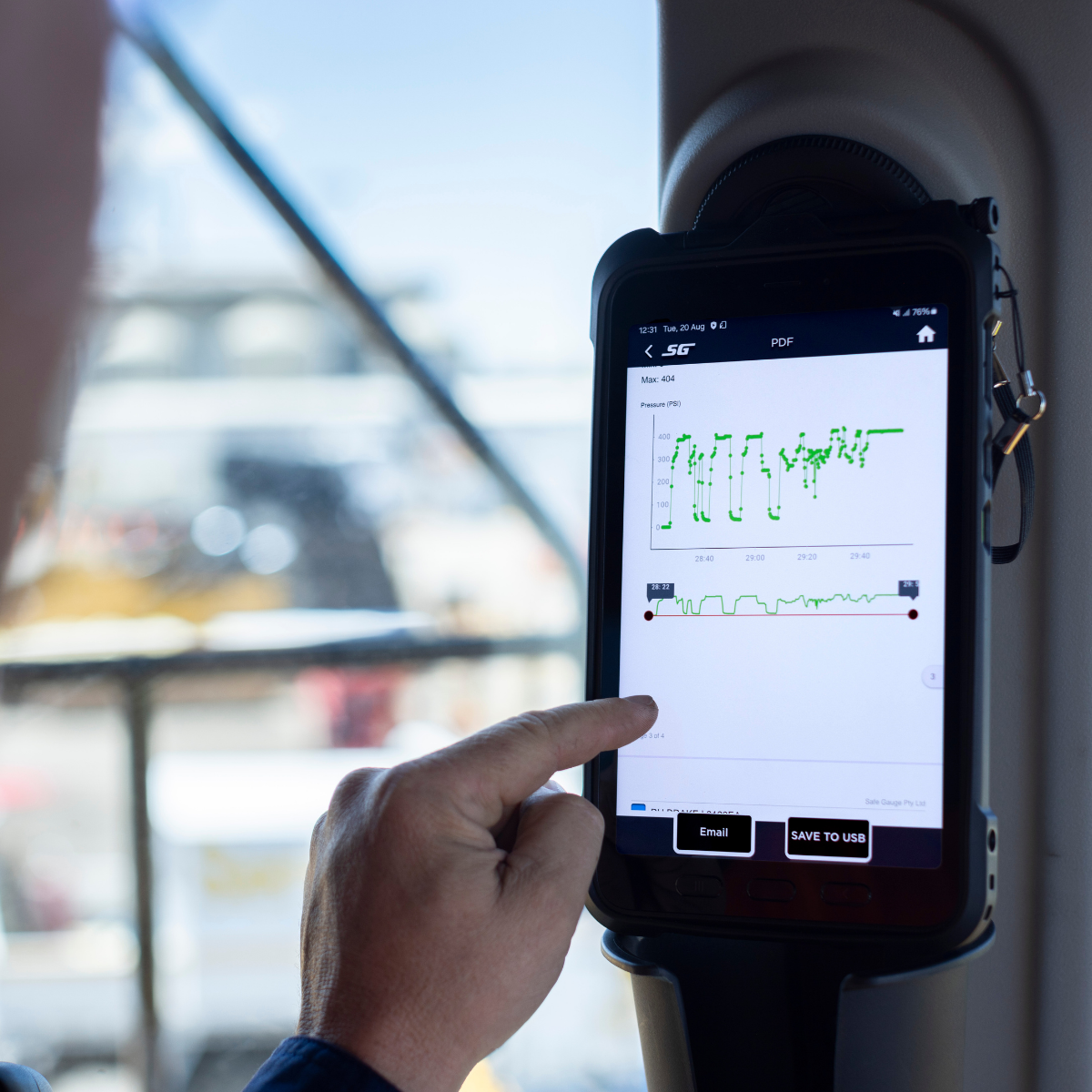

  • Real time data logging and graphing
  • Create custom reports with sensor comparison
  • Export data and save machine history
  • Rugged IP68 designed device - heavy
    duty applications
  • Intuitive touch-screen interface with plug and play setup

Electrical Specifications

Power connector (charging): Supplied USB-C Charger
Battery: Li-ion Single cell battery
Charging Requirement: To be charged by SafeGauge supplied charger.
Operating time from full charge: Up to 20 hours
Battery life cycle: 500 charging cycles
Charging time: Up to 3 hours

Mechanical Specifications

Dimensions:
13 x 22 x 1 cm / (5.02” x 8.45” x 0.39” )
14.50 x 23.50 x 2.50 cm / (1” x 5.7” x 9”) (in case)
Weight: 144g (5.1oz) in case
Operating temperature: 0 to 65°C (32 to 149°F)
Sensor Charging temperature: 0 to 45°C (32 to 113°F)
Units - Pressure: psi, kPa, bar, MPa, kg/cm2, inHg
Units - Displacement: mm, inch
Units - Revolution: RPM
IP Rating: IP68
MIL-STD: MIL – STD 810H

Communications Specifications

Radio type:
BLE (Bluetooth Low Energy) 2.4Ghz
WiFi 2.4/5 GHz
LTE Cellular (SIM included)
Channels: Up to 12 paired devices
Data export: PDF

Environmental Specifications

Battery Disposal: When finished with a SafeGauge product please return to Safe Gauge Pty Ltd for correct battery recycling, or follow your local area laws and guidelines for correct battery disposal.

Downloads

Brochure
Data Sheet
Quick Start Guide

TESTIMONIALS

This transducer kit is brilliant! Absolutely better than the other one we have; it was raining the day we completed a transmission test on the 793F. We fitted the transducers and sat in the cab, completed the test quickly and very easily, thanks to the new kit.

WesTrac

The SafeGauge products are a great addition to our tooling inventory. Tooling that removes personnel from the footprint of the machine. It makes the technician's job easier. Dial indicators, again, remove personnel from the footprint of the machine. Eliminates technicians from crush/pinch points.

WesTrac

Just wanted to say thanks for lending us the latest testing kit for the trial on DT5304. Feedback from the team is that it works well and does what it's meant to do. The transducers have good range. The only request is for some extra transducers in the kit as we have already discussed.

WesTrac

We now have the SafeGauge Dial Indicator units on-site, and they’re an absolute pleasure to use. We look forward to incorporating this new technology into our existing servicing procedures.

Fortescue

We have mandated SafeGauge Pressure Transducers across our entire site and banned regular pressure gauges entirely. SafeGauge products have made our maintenance procedures significantly safer by entirely removing our techs from exposure to high-risk areas. The implementation has reduced the time it takes to do our regular checks by at least 50%.

WesTrac

This tooling has almost halved our workload during live testing and the lads love it as it is a lot more user-friendly than the previous tooling we had. Since then, we’ve purchased another kit after the first one we bought. We highly recommend SafeGauge to others for tooling purchases as the tooling is simple, robust, and user-friendly.

Rio Tinto

Frequently Asked
Questions

What is the SafeGauge MultiTool Pro?

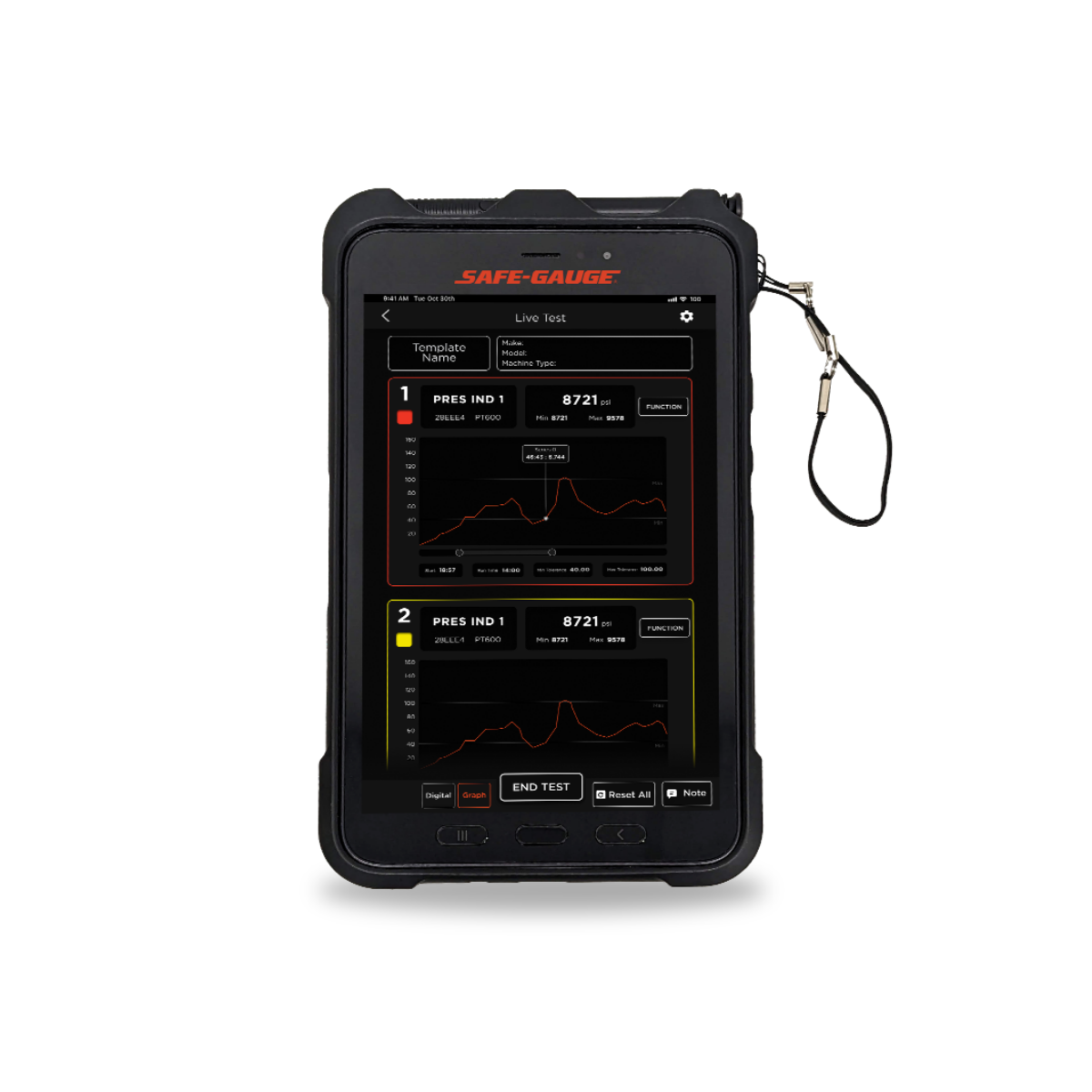

The SafeGauge MultiTool Pro is a rugged, portable touchscreen tablet designed to wirelessly connect and display data from multiple SafeGauge sensors at once. It enables technicians to safely monitor live tests from a distance, eliminating the need to work within the machine’s footprint.

How many sensors can connect to the MultiTool Pro at once?

The MultiTool Pro can connect to and display data from up to 12 SafeGauge sensors simultaneously, making it ideal for multi-channel testing applications.

What is the wireless range of the MultiTool Pro?

The MultiTool Pro supports wireless connectivity of up to 100m (328ft), allowing technicians to conduct live testing from a safe distance away from hazards such as crush zones and high-pressure systems.

What SafeGauge sensors are compatible with the MultiTool Pro?

The MultiTool Pro is compatible with the full range of SafeGauge wireless sensors, including Pressure Transducers, Dial Indicators, Tachometers, Push Rods, Laser Displacement Sensors, SafeSwitch, and Inspection Cameras.

How does the MultiTool Pro help eliminate live work (ELW)?

By wirelessly streaming live measurement data to a single device, the MultiTool Pro allows technicians to step away from running machinery during testing. This significantly reduces exposure to high-risk environments while maintaining full visibility of test results.

What data viewing and reporting features are included?

The MultiTool Pro features real-time data display, data logging, and graphing tools. Technicians can generate comprehensive test reports and export data in PDF or CSV format for sharing, compliance, and record-keeping.

What is the battery life of the MultiTool Pro?

The MultiTool Pro offers up to 10 hours of operating time on a single charge and is rated for approximately 500 charging cycles. It can be fully recharged in up to 3 hours using the rugged charging solution.

Is the MultiTool Pro suitable for harsh environments?

Yes. The MultiTool Pro has an IP68 rating and is built for industrial use. It operates in temperatures from 0–65 °C (32–149 °F), making it suitable for demanding field conditions.

What measurement units does the MultiTool Pro support?

The MultiTool Pro supports multiple measurement units, including:

  • Pressure: psi, kPa, bar, MPa, kg/cm2, inHg
  • Displacement: mm, inch
  • Speed: RPM
