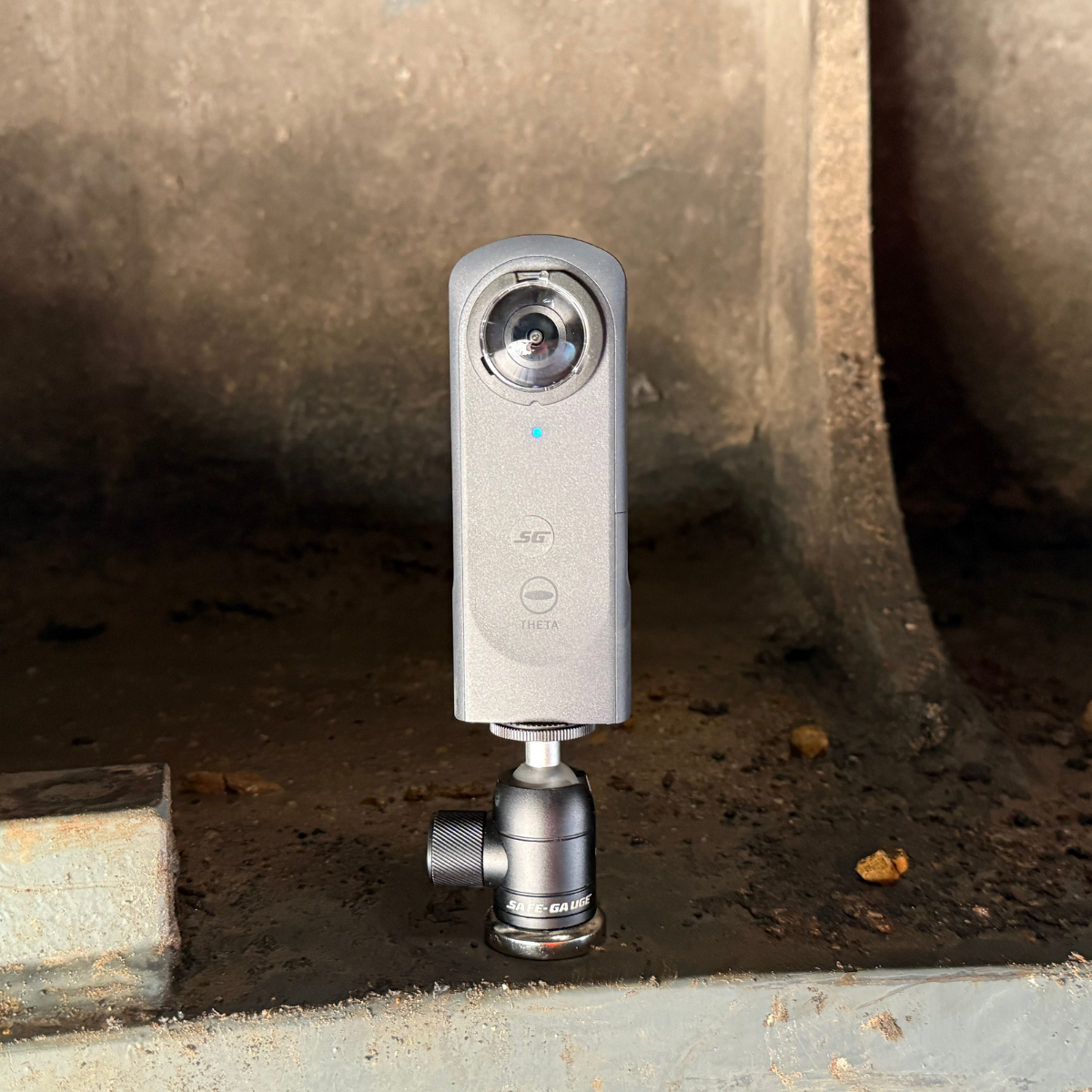

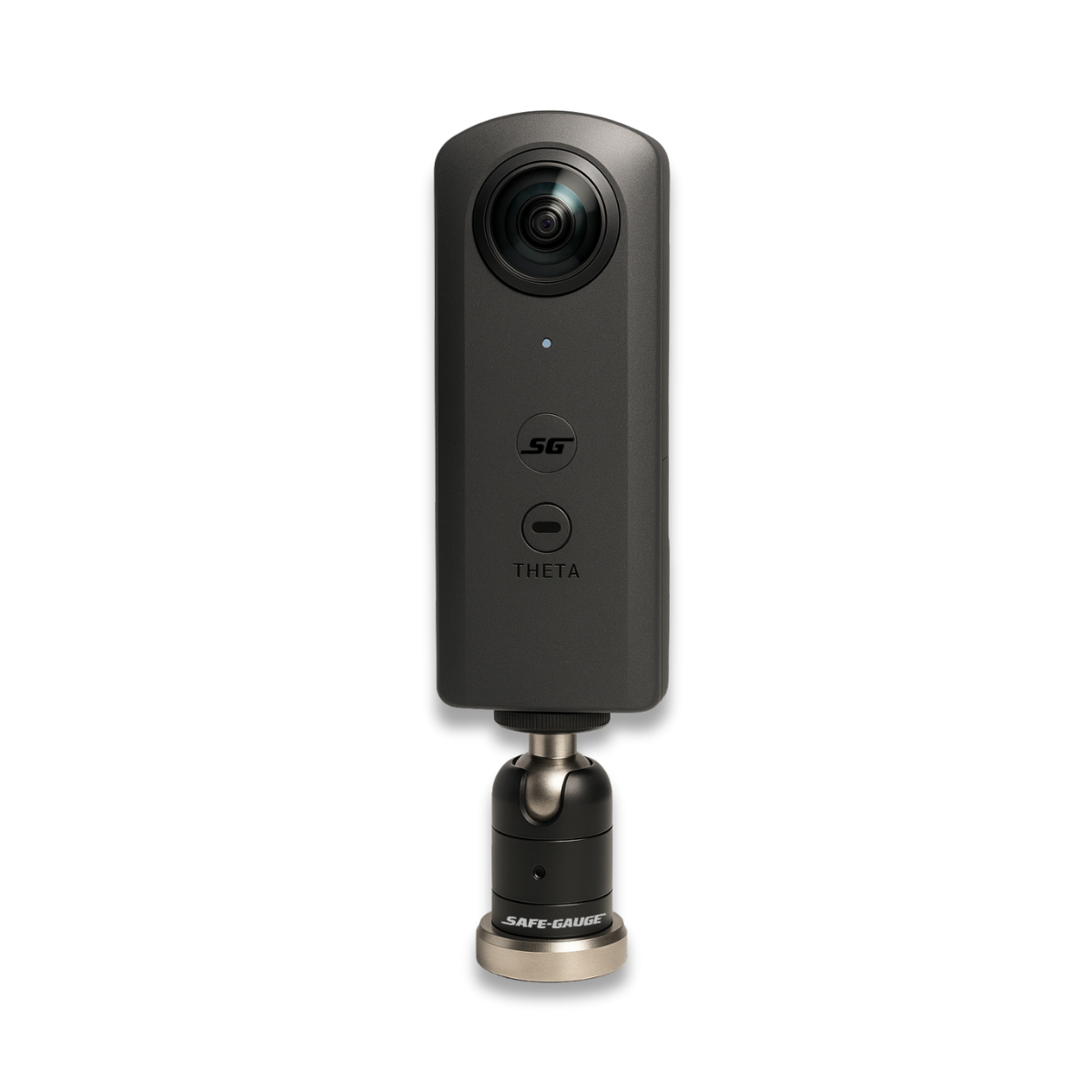

Inspection Camera

Built for Heavy Diesel Mechanics, Technicians and Fitters, this wireless camera gives you a second set of eyes on components in crush-risk and confined spaces, all from up to 50m (164ft) away.

Whether you’re inspecting engine bays, attaching dozer blades, working with forklifts, or working with overhead cranes, the SafeGauge Inspection Camera helps you see exactly what you’re doing without putting yourself or your team in harm’s way.

With real-time Full HD visibility, powerful pan/tilt/zoom control through the MultiTool Pro, and the ability to reduce or even eliminate the need for spotters, tasks that once needed two or three people can often be completed by just one - safely.

Features

  • Remove technicians from danger zones (crush points).
  • Eliminate the need for spotters / reduce the number of personnel needed to complete a task.
  • Fast setup
  • Save and export photos and videos.
  • Enrich SafeGauge Dial Indicator reports with photos and videos that show clearances, tolerances and component wear.

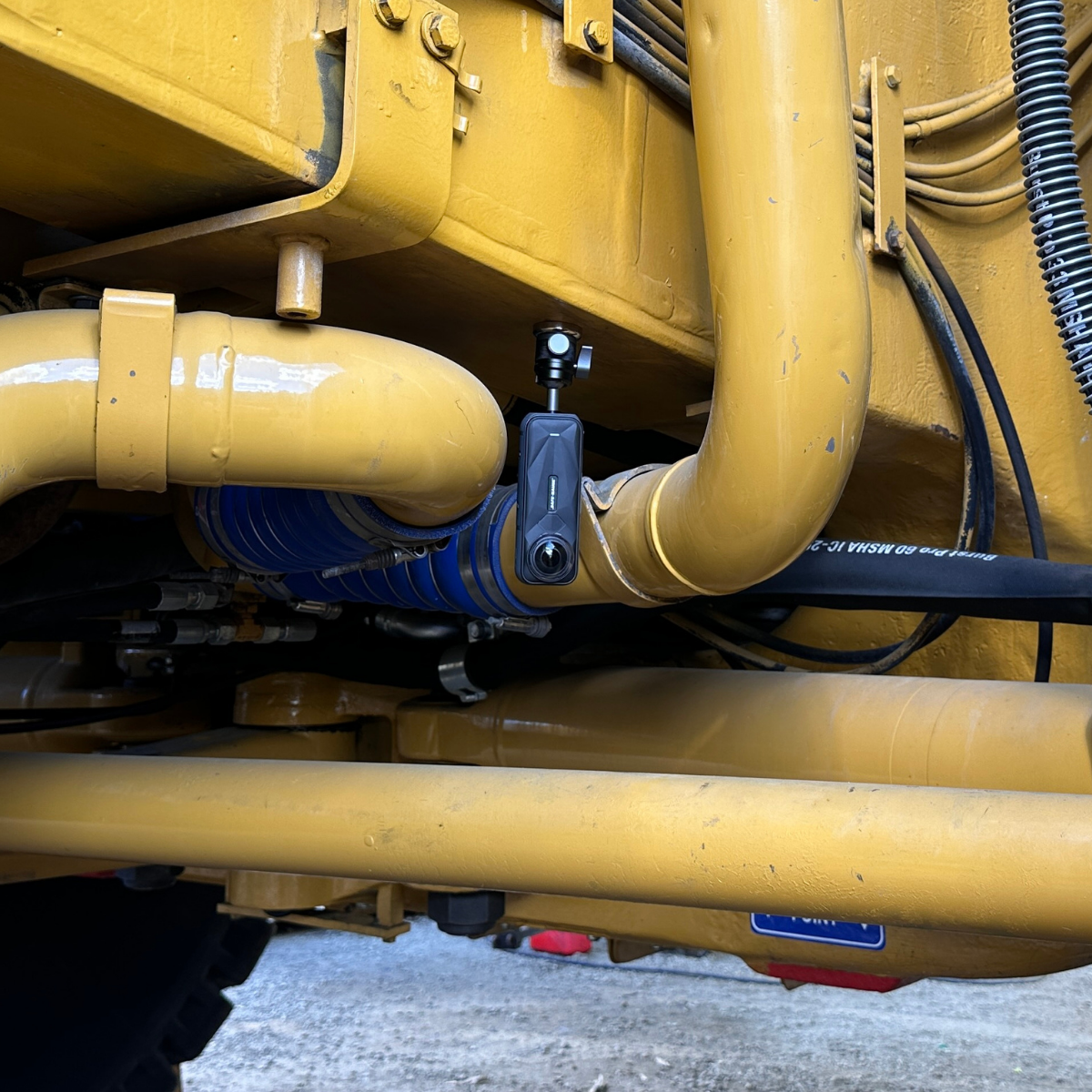

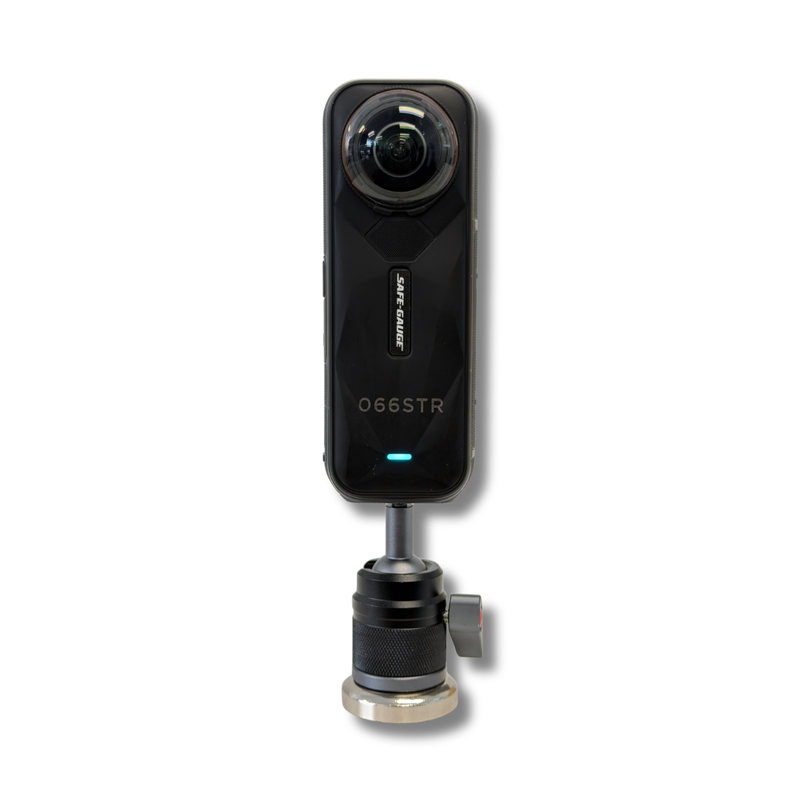

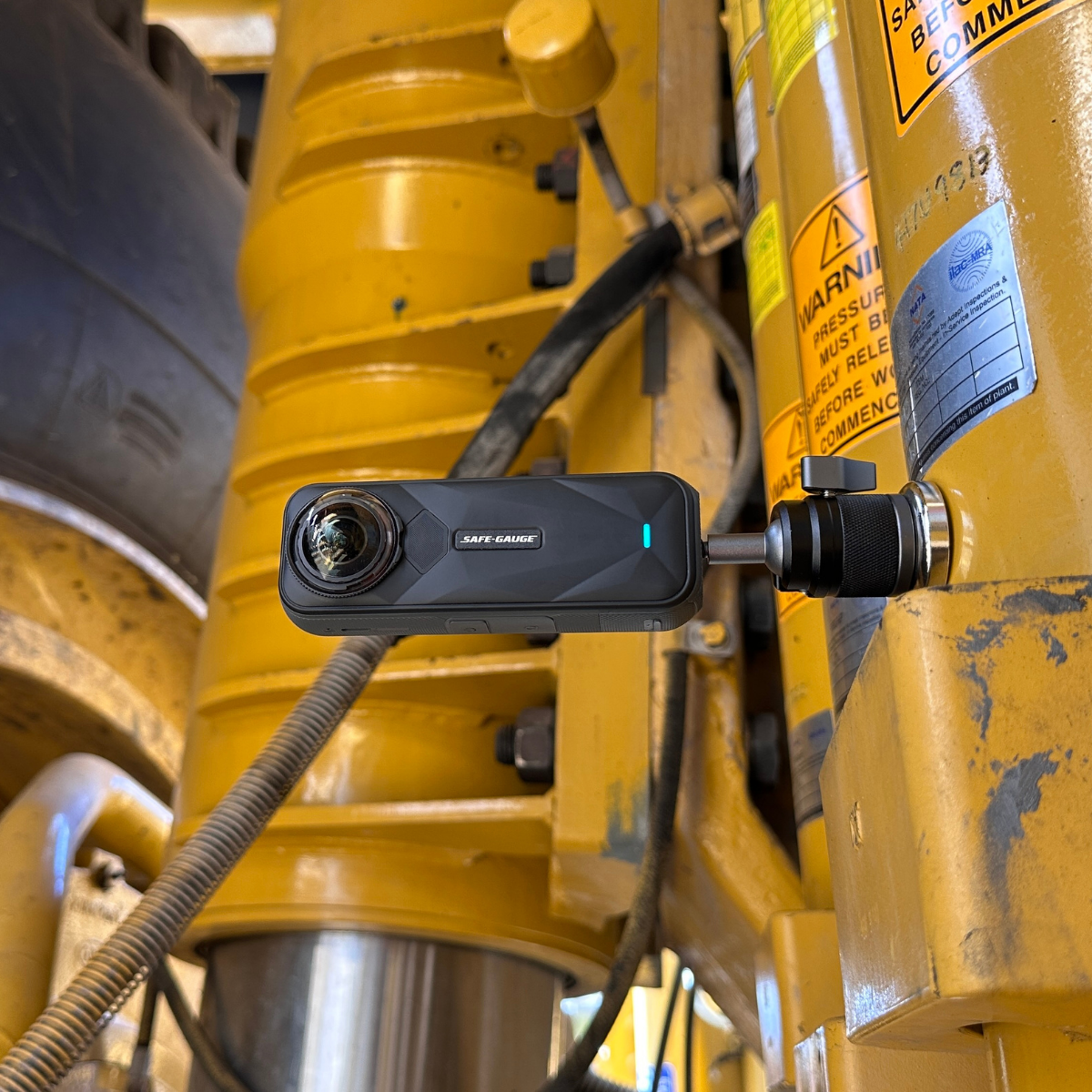

  • Strong magnetic mount with lockable swivel head

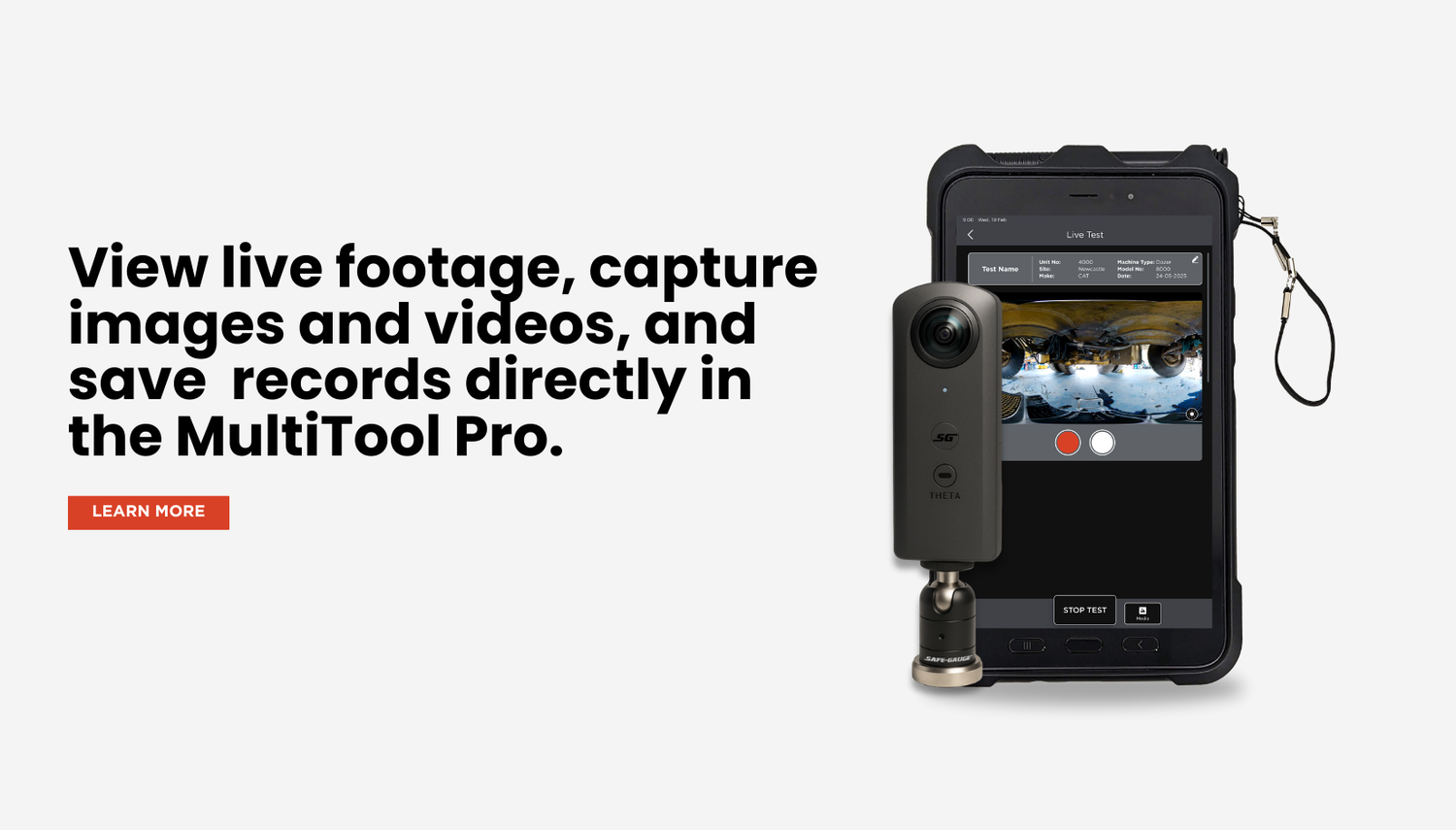

  • Integrates seamlessly with the MultiTool Pro
  • Take and save photos and videos
  • 360°, Full HD video resolution (4K recordings)
  • Pan, tilt and zoom capability
  • Rugged design for tough mining conditions

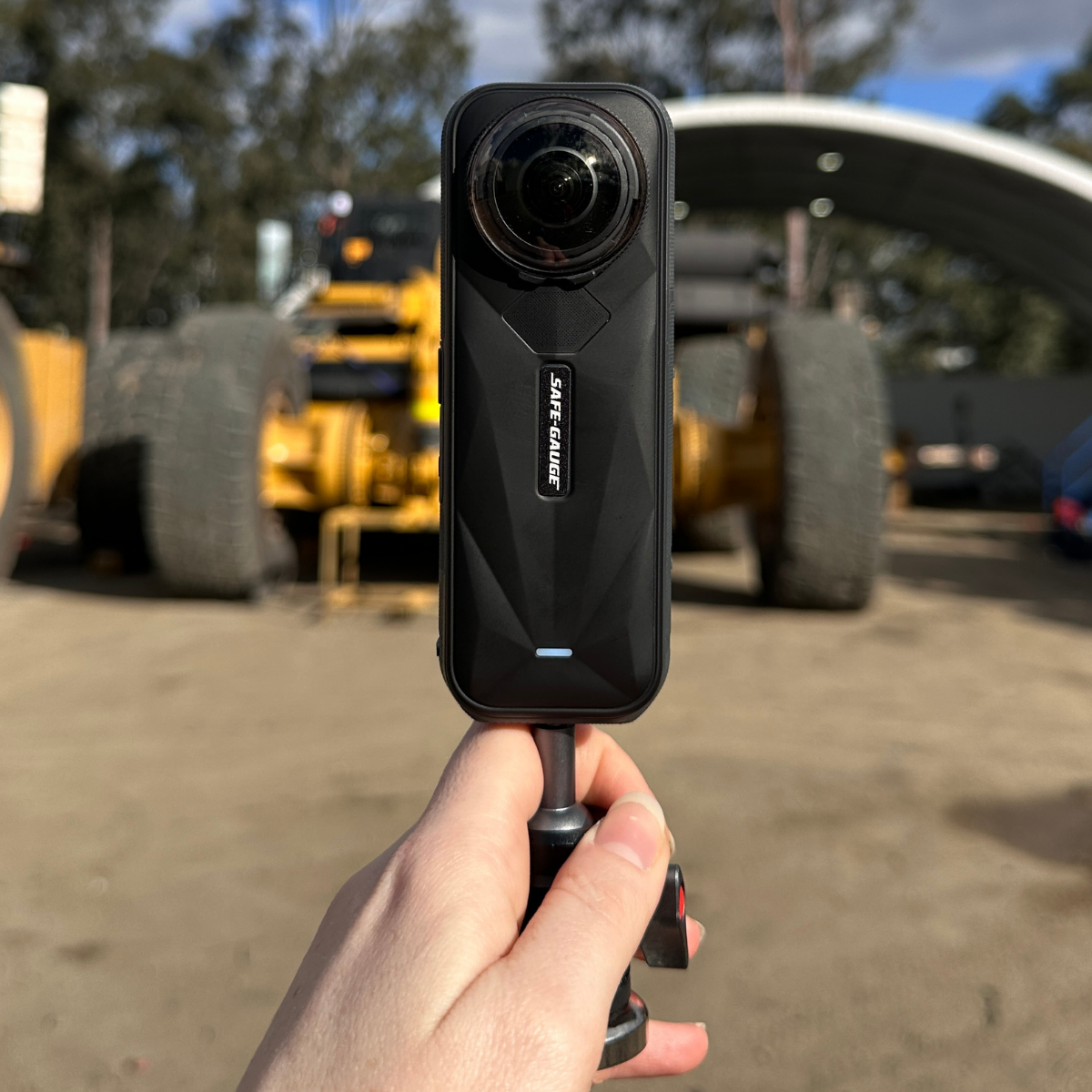

  • Small, handheld design for use in small, confined spaces
  • Audio stream on video recordings
  • Stream high-res imagery from up to 50 metres away.

Lens and Media Specifications

Aperture: F2.4
Image Sensor: 1/2.0" (x2), Effective pixels: ~48 MP (x2)
Charging: To be charged by SafeGauge charging case only
Video Resolution: 4K: 3840x1920/30fps/100Mbps
Still Image File Format: JPEG
Video File Format:MP4 (MPEG-4 AVC/H.264, AACLC 1ch)
Recording Media: Internal Memory: ~46 GB
Shutter Speed & ISO: Auto/Shutter Priority: ISO50-3200
Exposure Compensation: -2.0 to +2.0 EV (1/3 EV steps)
Charging Time: 3 hours (from zero to full charge)

Display and Connectivity Specifications

DisplayPanel: 2.25" TFT Color LCD (360x640), Auto Brightness
Touch Panel: Capacitance Type
Wireless Standards: 802.11 a/b/g/n/ac (2.4GHz / 5GHz), Bluetooth 5.0.
Interfaces: USB Type C, USB 3.2 Gen 1
Maximum WiFi Range: 50 metres (164 feet) line of sight

Power and Dimensions Specifications

Power Supply: Rechargeable DB110 (1350 mAh)
Maximum Range: 50 metres (164 feet)
Battery Life (4K Video):
~55 minutes
Dimensions: 51.7mm (W) x 136.2mm (H) x 29.0mm (D) (~2.0" (W) x 5.4" (H) x 1.1" (D))
Weight: ~170grams (with battery and microSD), ~144grams for camera only

Environmental Specifications

Operating Temperature Range: 0 to 40°C (32 to 104°F)
Operating Humidity Range: <90%
Storage Temperature Range: -20 to 60°C (-4 to 140°F)

Downloads

Inspection Camera Kit Options

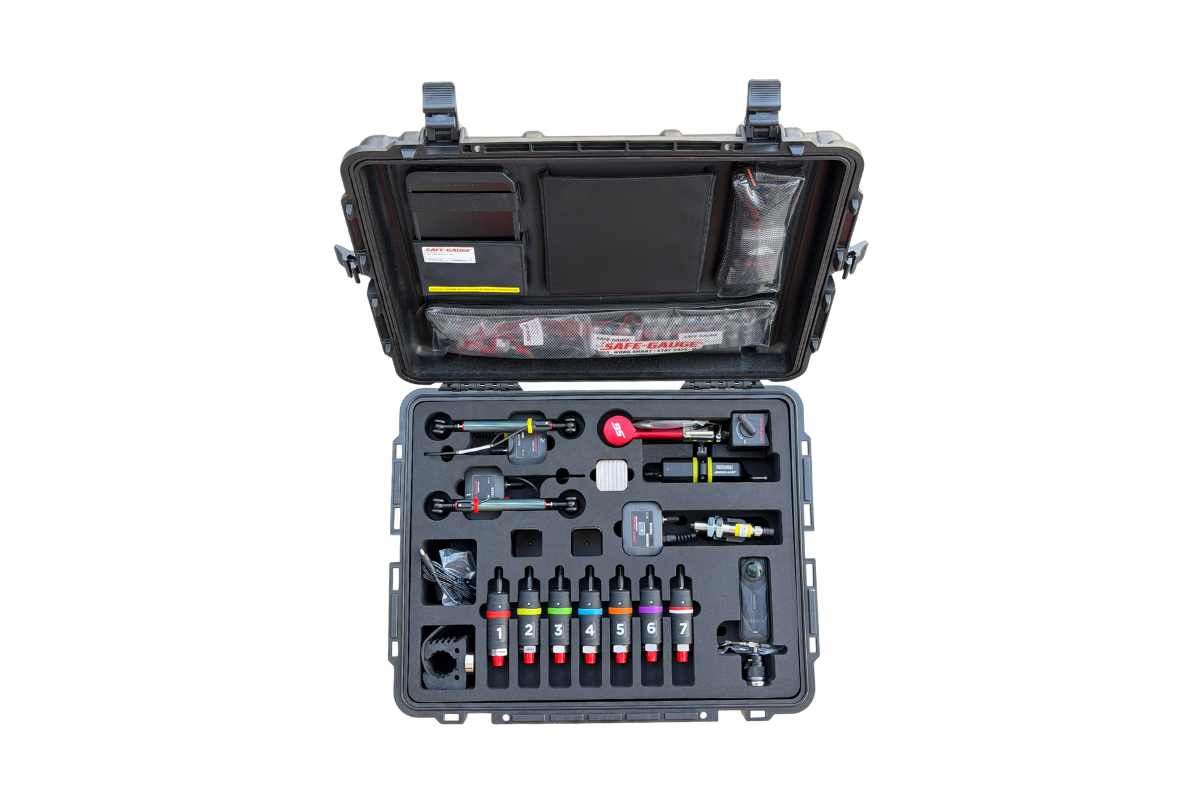

12 Channel Field Service Kit

7x Pressure Transducers
1x Dial Indicator
1x Tachometer
2x Push Rods
1x Inspection Camera
1x MultiTool Pro

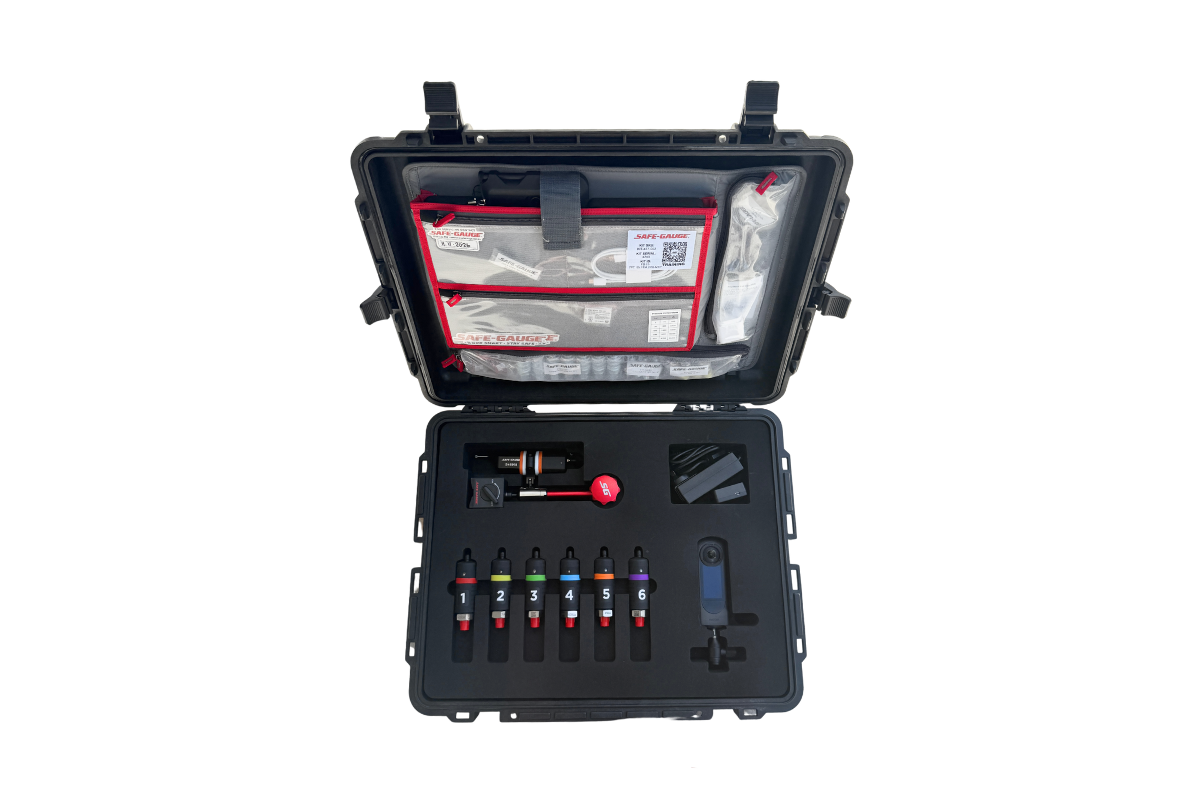

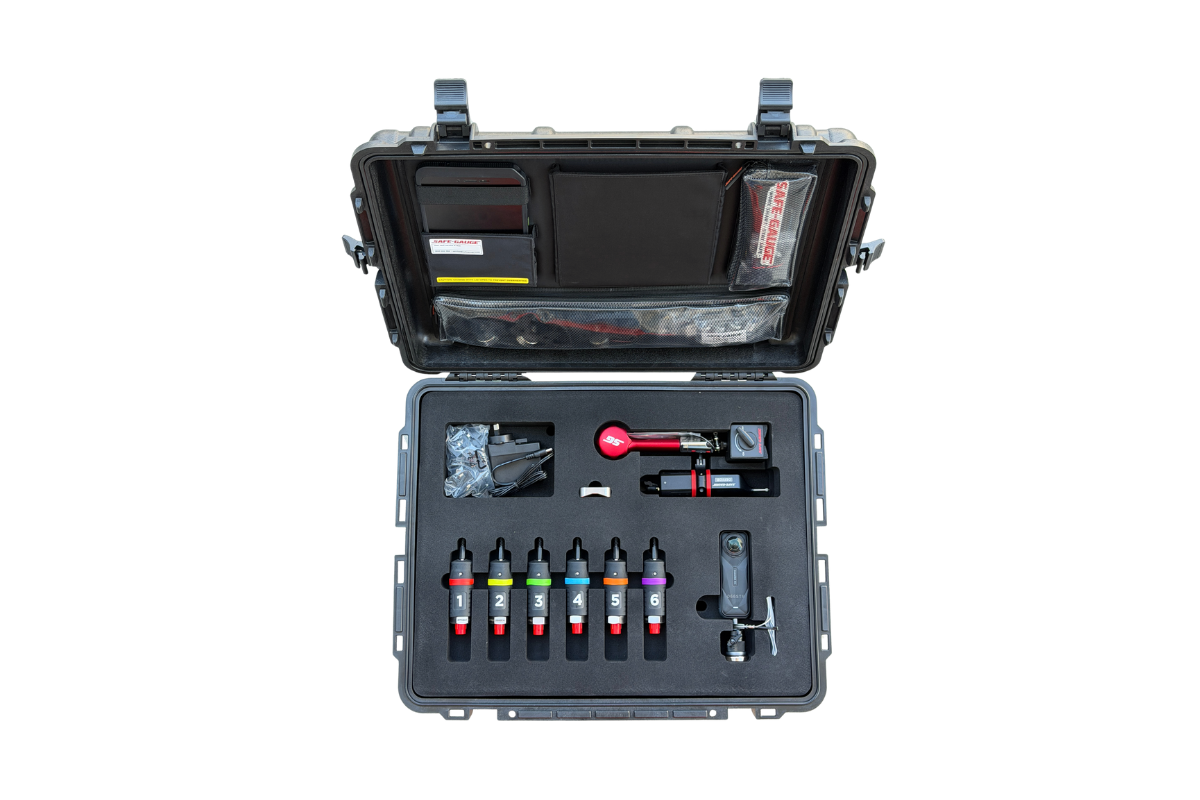

8 Channel Field Service Kit

6x Pressure Transducers
1x Dial Indicator
1x Inspection Camera
1x MultiTool Pro

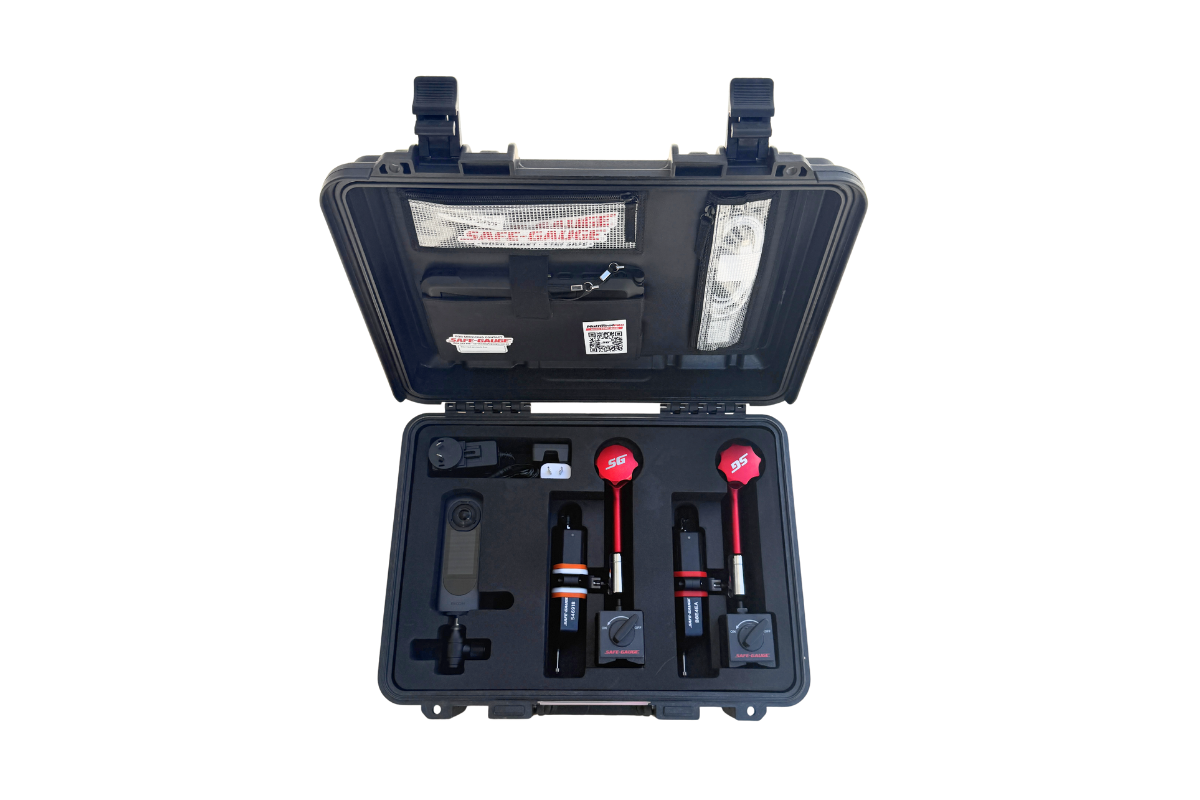

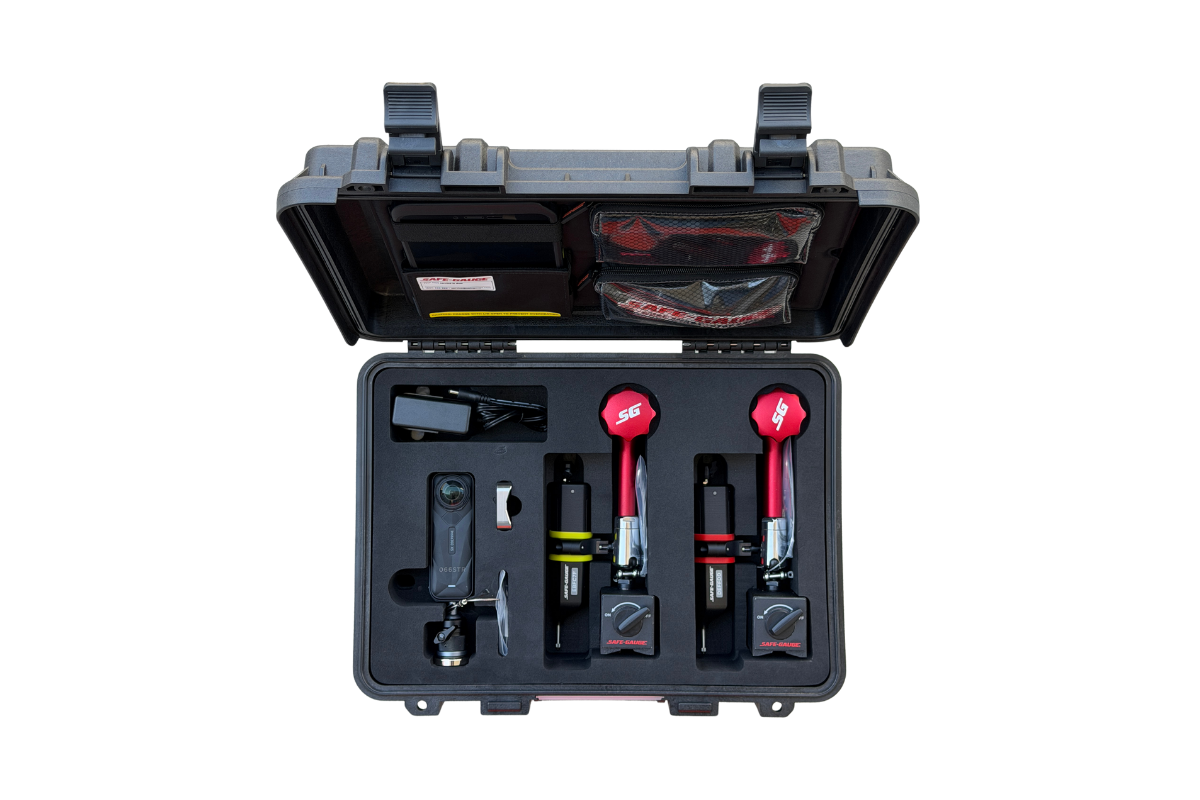

2 Dial Indicator Kit with Inspection Camera

2x Dial Indicators
1x Inspection Camera
1x MultiTool Pro

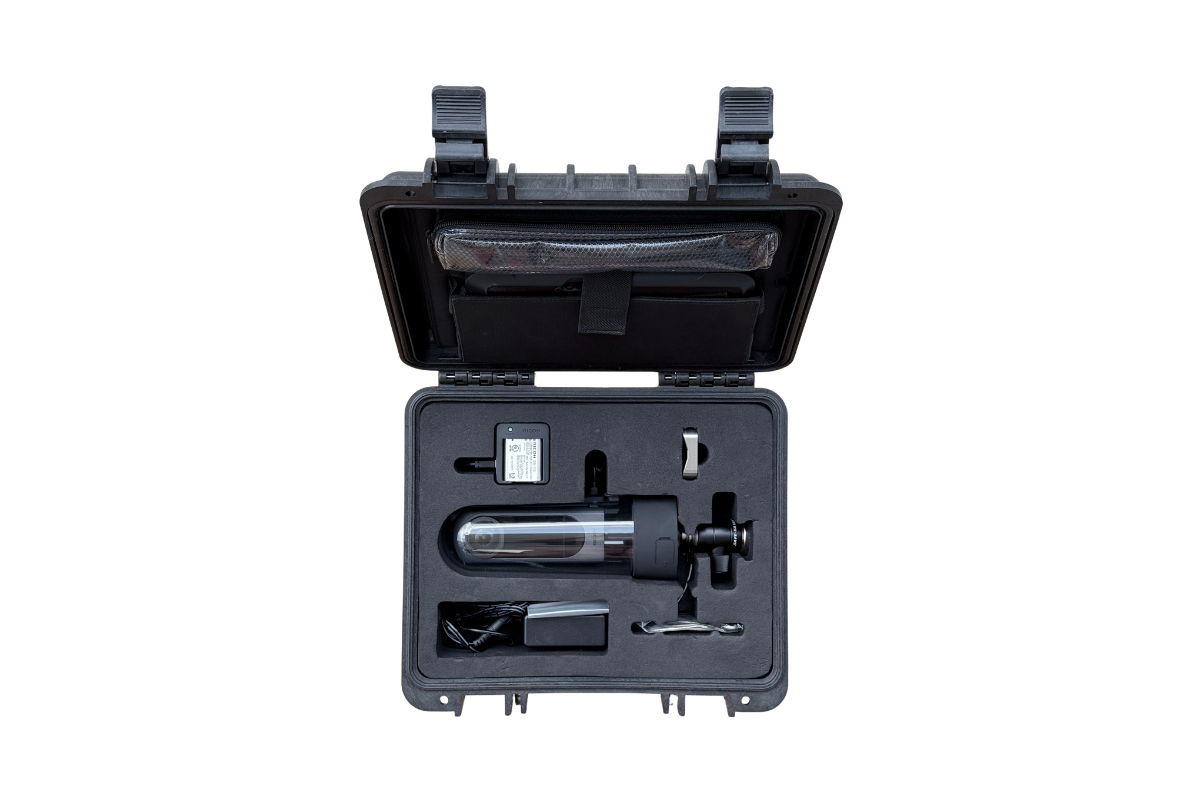

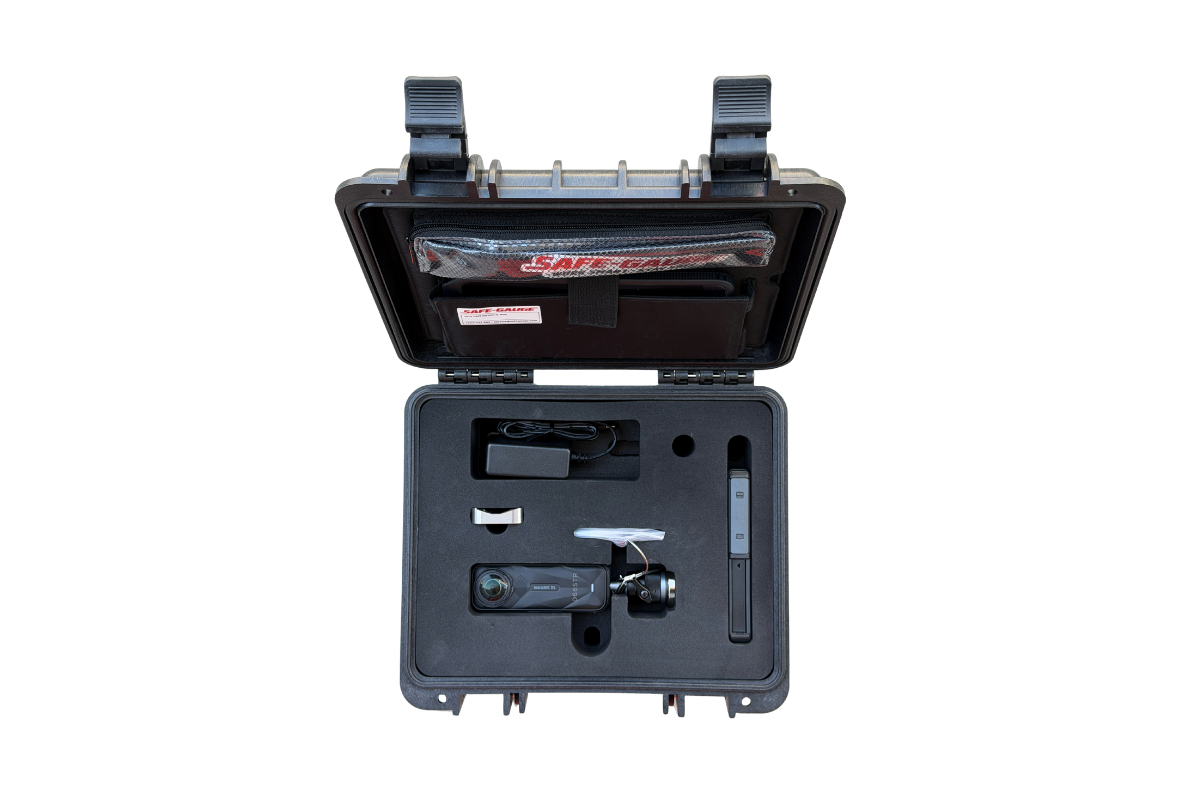

Inspection Camera Kit

1x Inspection Camera
1x Dome Protective Case
1x MultiTool Pro
1x Spare Battery
1x Battery Charger
1x V-Block
1x Fall Restraint Cable

What Our Customers Say About Us

This transducer kit is brilliant! Absolutely better than the other one we have; it was raining the day we completed a transmission test on the 793F. We fitted the transducers and sat in the cab, completed the test quickly and very easily, thanks to the new kit.

Just wanted to say thanks for lending us the latest testing kit for the trial on DT5304. Feedback from the team is that it works well and does what it's meant to do. The transducers have good range. The only request is for some extra transducers in the kit as we have already discussed.

This tooling has almost halved our workload during live testing and the lads love it as it is a lot more user-friendly than the previous tooling we had. Since then, we’ve purchased another kit after the first one we bought. We highly recommend SafeGauge to others for tooling purchases as the tooling is simple, robust, and user-friendly.

The SafeGauge products are a great addition to our tooling inventory. Tooling that removes personnel from the footprint of the machine. It makes the technician's job easier. Dial indicators, again, remove personnel from the footprint of the machine. Eliminates technicians from crush/pinch points.

We now have the SafeGauge Dial Indicator units on-site, and they’re an absolute pleasure to use. We look forward to incorporating this new technology into our existing servicing procedures.

We have mandated SafeGauge Pressure Transducers across our entire site and banned regular pressure gauges entirely. SafeGauge products have made our maintenance procedures significantly safer by entirely removing our techs from exposure to high-risk areas. The implementation has reduced the time it takes to do our regular checks by at least 50%.

Frequently Asked
Questions

What is the Inspection Camera's IP rating?

Paired with the Dome Accessory, the Inspection Camera is weather-resistant equivalent to an IP rating of IPX4. The Inspection Camera alone is not IP rated.

What is the battery life on the Inspection Camera?

The SafeGauge Inspection Camera has a battery life of approximately 55 minutes.

What is the distance range to stream the Inspection Camera feed to the MultiTool Pro?

Technicians can stand up to 50m (164ft) from the Inspection Camera whilst live streaming the camera to the MultiTool Pro.

What is the video resolution of the SafeGauge Inspection Camera?

4K: 3840x1920/30fps/100Mbps
Stream in full HD. Enjoy saved video recordings in 4K clarity.

Does the camera capture audio?

Whilst audio is not livestreamed to the MultiTool Pro, all saved video recordings contain audio.

How can I export/send videos from the MultiTool Pro?

Due to the large file size of videos, we recommend using the USB feature to export video from the MultiTool Pro.

How many Inspection Camera photos can I attach to a single email?

We recommend that no more than 3-5 photos be attached to an email. If you need to export/send more, simply use the USB functionality.

How many cameras can be used at once?

Only one camera can be streamed to a single MultiTool Pro at once.
