Tachometer Compact Kit
- A few left in stock! Expect a 2-3 week leadtime

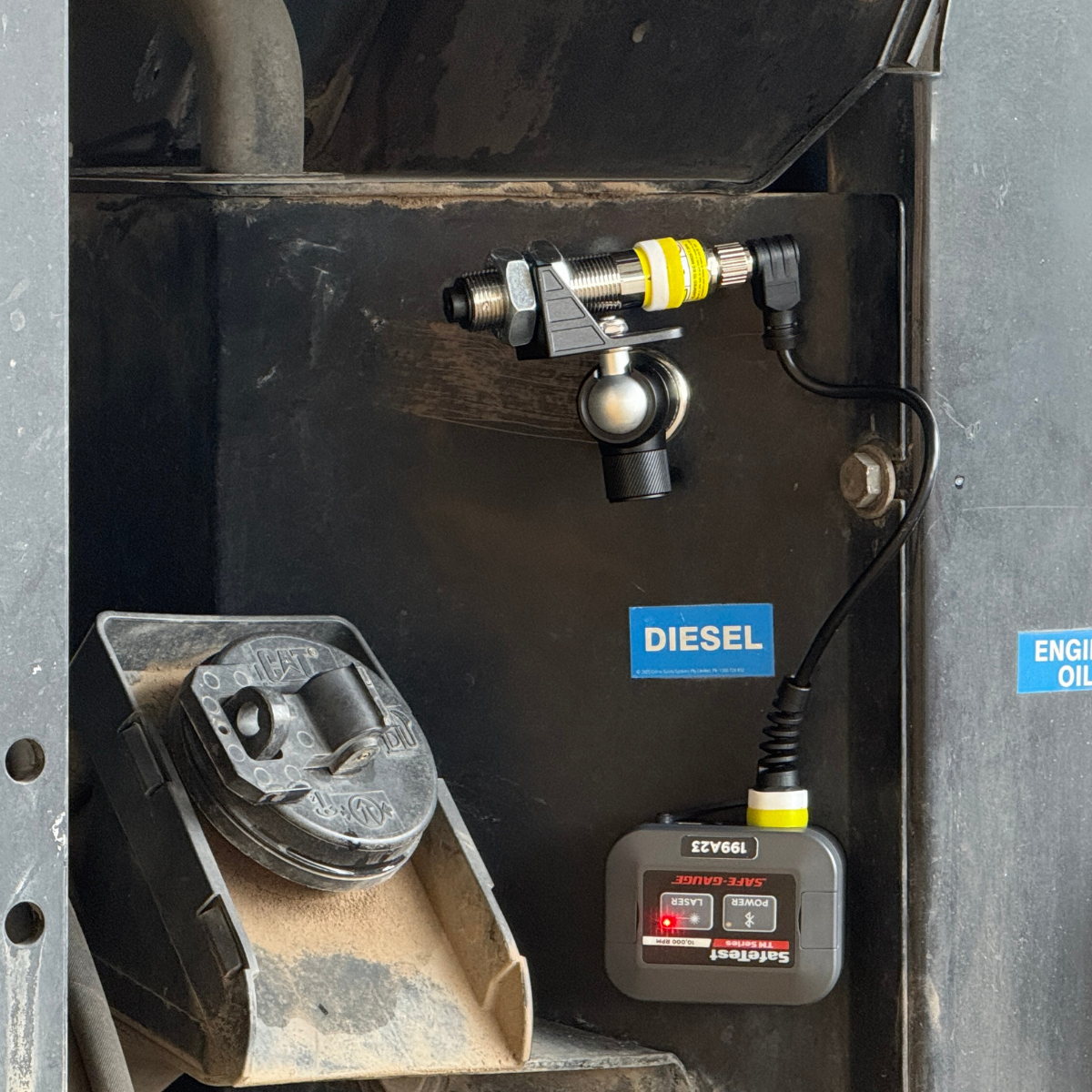

The SafeGauge Tachometer Compact Kit enables complete wireless measurement of RPM removing technicians from the live work. This tool has been proven successful for fans, pumps, drill heads and other rotating machinery components.
Built for harsh mining and industrial environments, the Tachometer Compact Kit delivers fast, precise RPM data in real time. Measurements stream wirelessly to the SafeGauge mobile app.
With high accuracy, long battery life, and a compact, durable design, the kit provides a reliable solution for safe speed measurement in the field.
Features
- Measures up to 10,000 RPM
- Accuracy of +/- 0.01% of reading
- On target indicator
- Rugged IP rated design
- Stainless steel laser housing
- Visible Class 2 red laser
- Up to 1.5m (5ft) laser operating distance
Electrical Specifications
Power Connector: USB Type-C (5V)
Battery Technology: Internal LiPo (Lithium Polymer) 3.7 volt pack
Battery Life Cycle: 1000 cycles
Charging: Charge only with SafeGauge charging case
Charging Time: 4 hours
Operating Time: 12 hours
Mechanical Specifications
Weight: 290g (10oz) without magnetic mounting base (520g (18oz) with magnetic mounting base)
Housing Material:
Communication box: ABS plastic
Laser: 316 stainless steel
Ingress Protection: IP67
Operating Range:
Tested range: 0.1 - 1.5m (0.3 - 4.9ft)
Tested angles: 15° to 45° off target
Visible Red Laser Specifications:
Laser Wavelength: 650nm
Laser Diode Life: 8,000 operating hours MTBF
Classification: Class 2 (Per IEC 60825-1:2014)
This product complies with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No 50 of June 2007.
Accuracy: +/- 0.01% of reading
Reflective Materials: Use only with reflective tape supplied by SafeGauge.
Other tapes have different reflective properties and may give inaccurate results.
Sensor Operating Temperature: -10 - 50°C (14 - 122°F)
Sensor Charging Temperature: 0 - 45°C (32 - 113°F)
Communication Specifications
Communication Type: Bluetooth low energy 2.4GHz
Maximum Range: Up to 100m (328ft) line of sight
Sample Rate: 8Hz

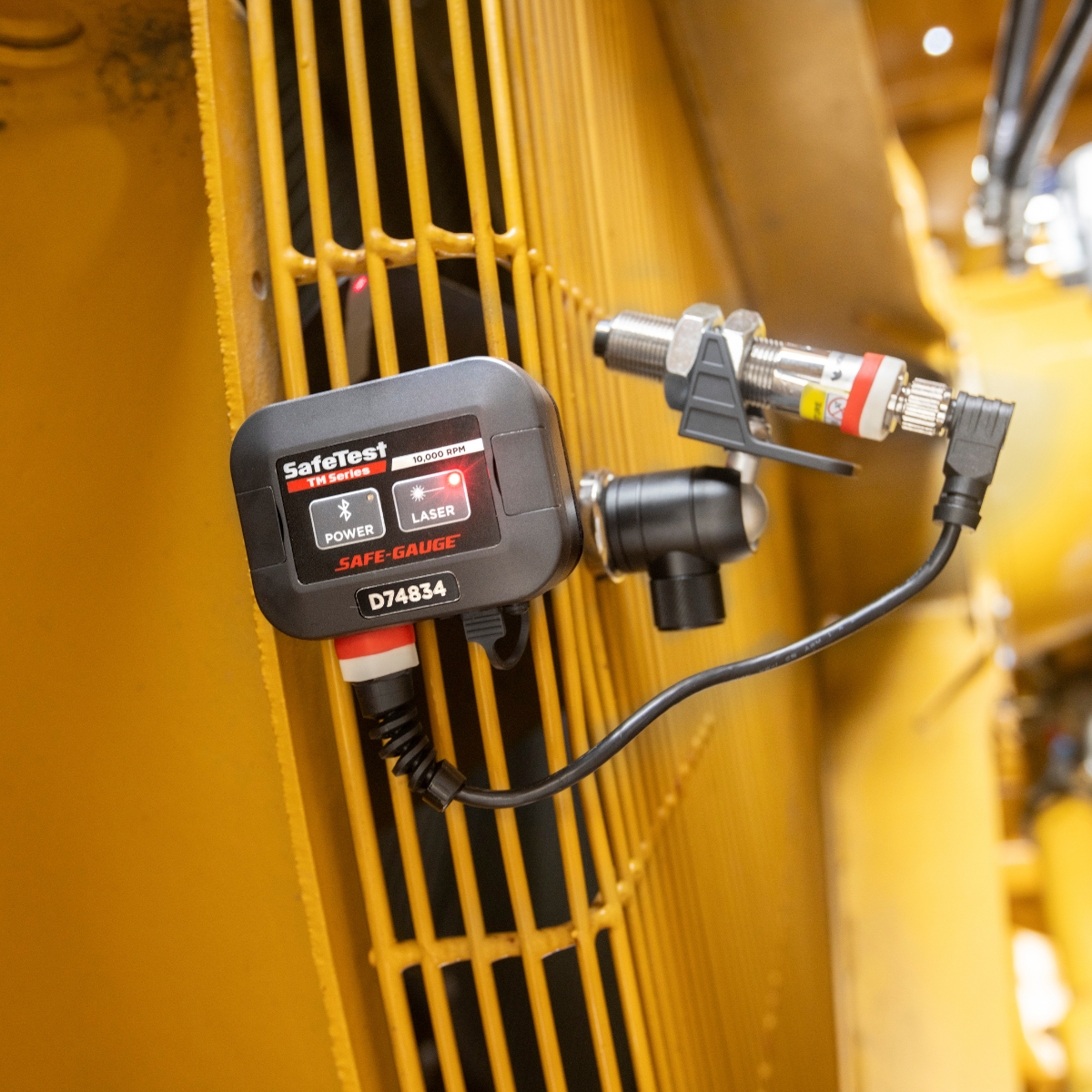

LED System: Communications box: Power LED flashes blue when searching to connect, and
green when connected.
Laser: LED flashes red when laser is on, and doesn’t shine when laser is off
Laser: Green when laser is on-target
Button System:
During charging: Buttons have no function
During Operation:
· Power button turns device on/off
· Laser button turns laser on/off
Environmental Specifications
Battery Disposal: When finished with a SafeGauge product please return to SafeGauge Pty Ltd for correct recycling, or follow your local area laws and guidelines for correct battery disposal.
Downloads
About the SafeGauge Tachometer
Common Use Cases
The SafeGauge Tachometer Compact Kit is designed for accurate, non-contact RPM measurement on rotating components. By streaming live RPM data wirelessly, it supports faster diagnostics, and safer workflows.
Typical applications include:

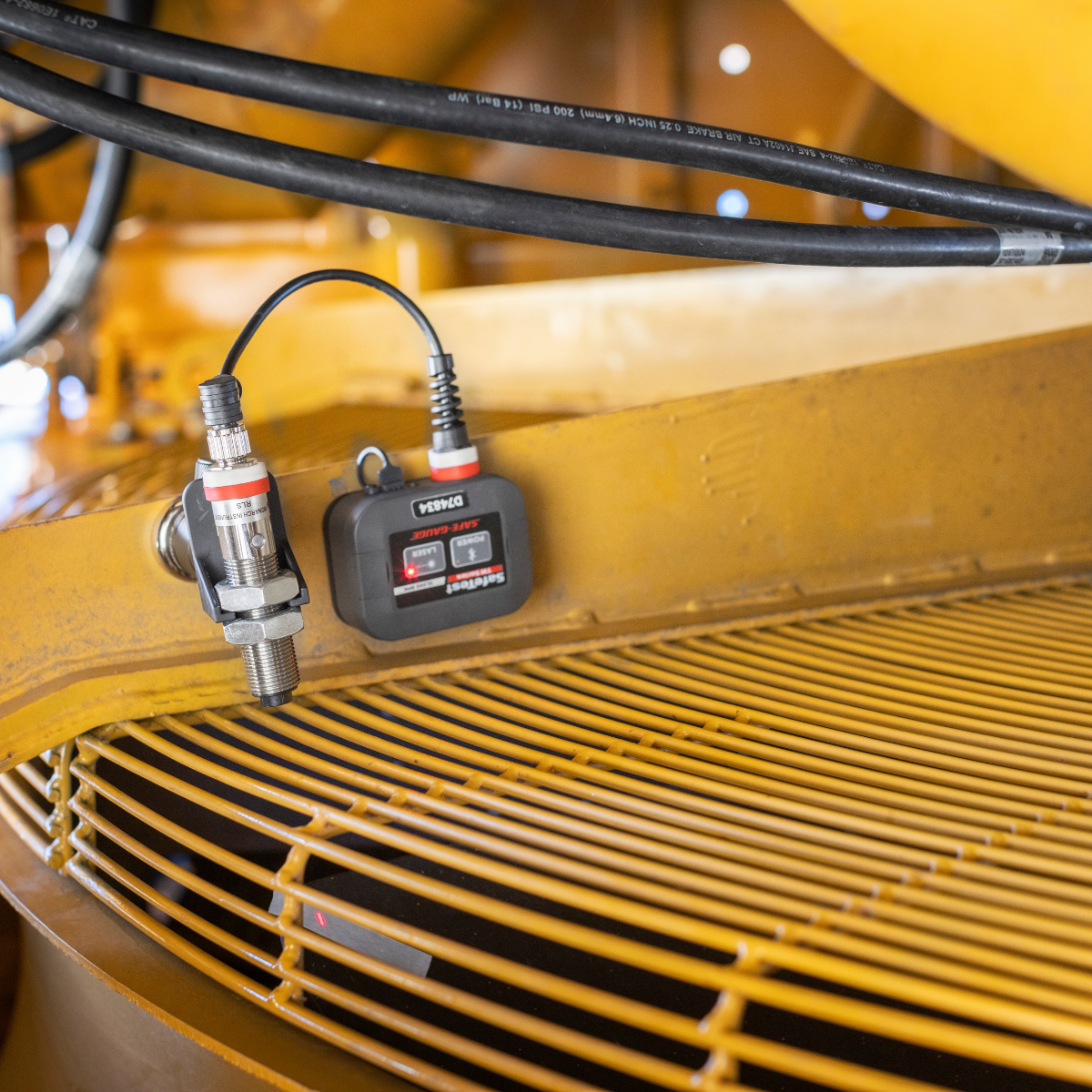

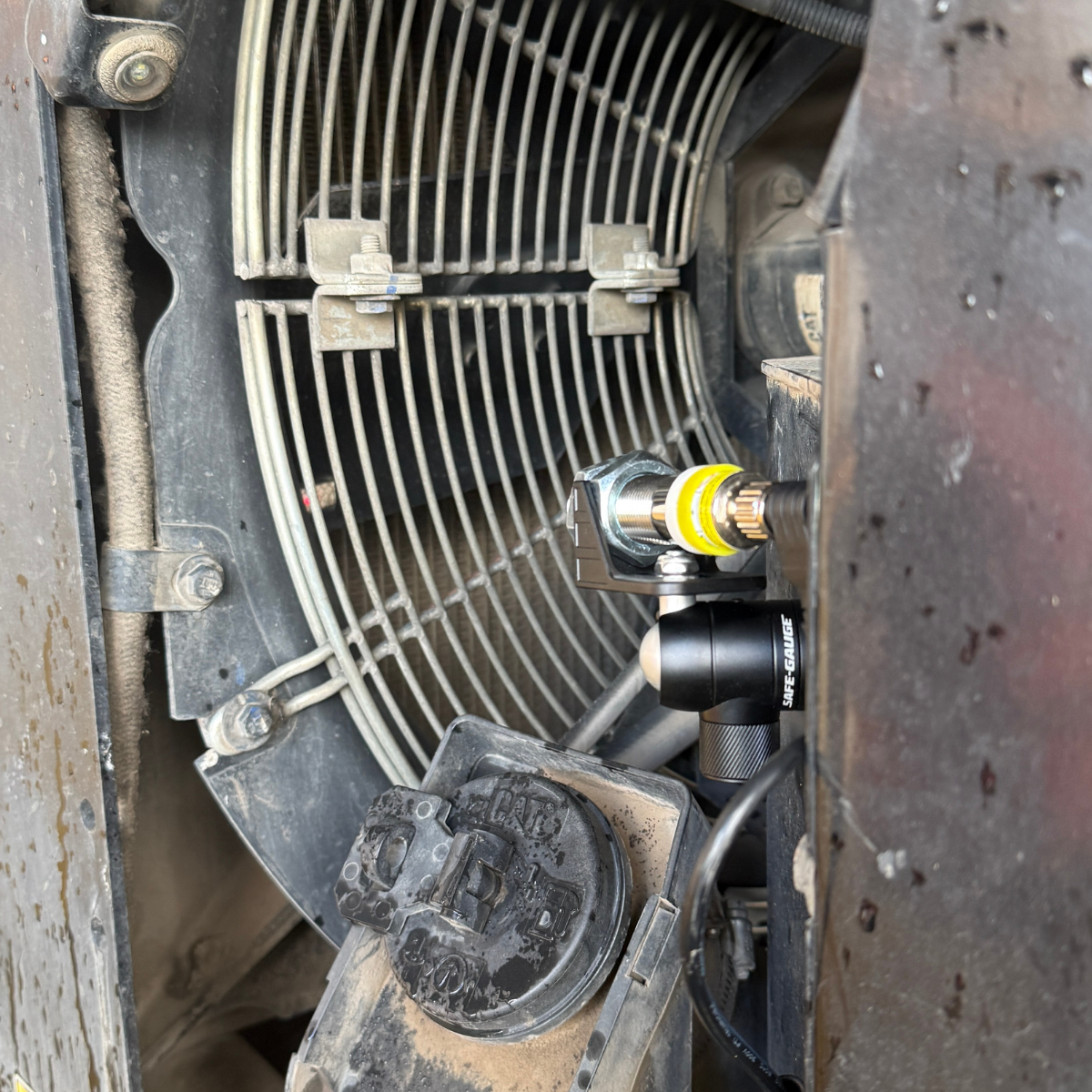

- Engine cooling fan adjustment
- Main and auxiliary driveshaft revolution
- Drive motor speed measurement
Key Features and Benefits
- Measures up to 10,000 RPM
- Accuracy of +/- 0.01% of reading
- On target indicator
- Rugged IP rated design
- Stainless steel laser housing
- Visible Class 2 red laser
- Up to 1.5m (5ft) laser operating distance
Compatibility with the SafeGauge Mobile App
The SafeGauge Tachometer Compact Kit pairs directly with the SafeGauge mobile app, giving technicians a simple and portable way to view and capture RPM data.
Once connected, live RPM readings stream wirelessly to the app in real time, allowing technicians to monitor rotating components from a safe distance. Measurements are automatically captured digitally, removing the need for handwritten notes.
Frequently Asked Questions
What applications are there for the SafeGauge Tachometer?
Speed measurements on:
• Engine cooling fans
• Pulleys and belts
• Turbines or other spinning components
What is included in the Tachometer Compact Kit?

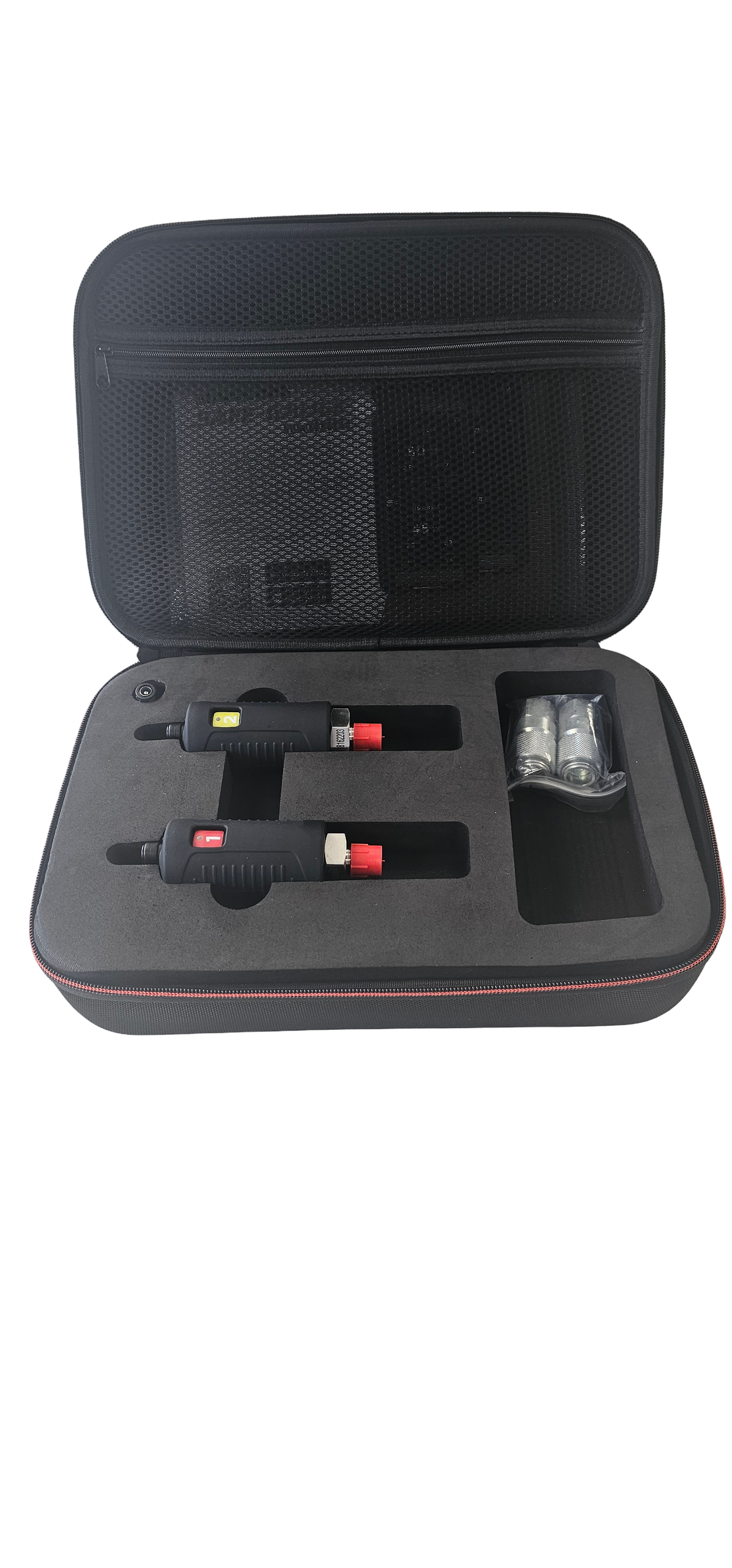

The Tachometer Compact Kit includes:
- Tachometer
- Reflective Tape
- Charger & cable (USB-C)
- Zip up carry case
What is the measurement range of the Tachometer?
The SafeGauge Tachometer can measure speeds up to 10,000 RPM.
At what distance can the Tachometer be away from the target?
The Tachometer can measure from up to 1.5m (4.9ft) away.
How safe is the laser used in the SafeGauge Tachometer?
The laser in our Tachometer is rated a Visible Class 2 laser.
Does the SafeGauge Tachometer come with a warranty?
Yes, the SafeGauge Tachometer has a 12-month warranty.
