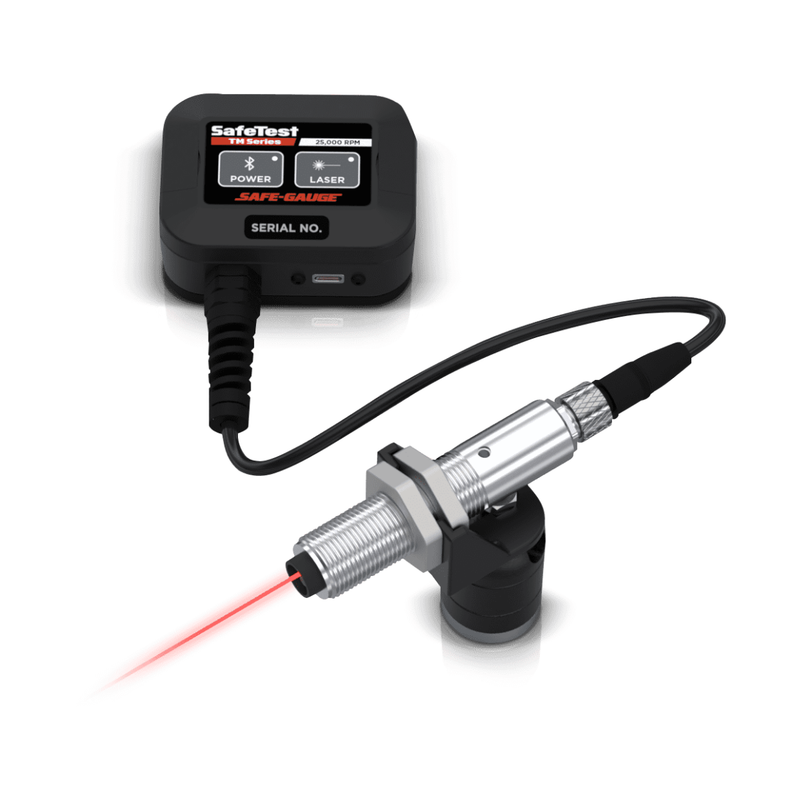

The SafeGauge Tachometer enables complete wireless measurement of RPM removing technicians from the live work. This tool has been proven successful for fans, pumps, drill heads and other rotating machinery components.
This rugged, non-contact laser tachometer is designed to achieve fast, accurate measurements in the harshest mining environments while the technician is safely out of harm’s way.
Power Connector: USB Type-C (5V)
Battery Technology: Internal LiPo (Lithium Polymer) 3.7 volt pack
Battery Life Cycle: 1000 cycles
Charging: Charge only with SafeGauge charging case
Charging Time: 4 hours
Operating Time: 12 hours
Weight: 290g (10oz) without magnetic mounting base (520g (18oz) with magnetic mounting base)
Housing Material:
Communication box: ABS plastic
Laser: 316 stainless steel
Ingress Protection: IP67
Operating Range:
Tested range: 0.1 - 1.5m (0.3 - 4.9ft)
Tested angles: 15° to 45° off target
Visible Red Laser Specifications:
Laser Wavelength: 650nm
Laser Diode Life: 8,000 operating hours MTBF
Classification: Class 2 (Per IEC 60825-1:2014)
This product complies with IEC 60825-1 Ed. 3 and 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No 50 of June 2007.
Accuracy: +/- 0.01% of reading
Reflective Materials: Use only with reflective tape supplied by SafeGauge.
Other tapes have different reflective properties and may give inaccurate results.
Sensor Operating Temperature: -10 - 50°C (14 - 122°F)
Sensor Charging Temperature: 0 - 45°C (32 - 113°F)
Communication Type: Bluetooth low energy 2.4GHz
Maximum Range: Up to 100m (328ft) line of sight
Sample Rate: 8Hz
LED System: Communications box: Power LED flashes blue when searching to connect, and
green when connected.
Laser: LED flashes red when laser is on, and doesn’t shine when laser is off
Laser: Green when laser is on-target
Button System:
During charging: Buttons have no function
During Operation:
· Power button turns device on/off
· Laser button turns laser on/off
Battery Disposal: When finished with a SafeGauge product please return to SafeGauge Pty Ltd for correct recycling, or follow your local area laws and guidelines for correct battery disposal.

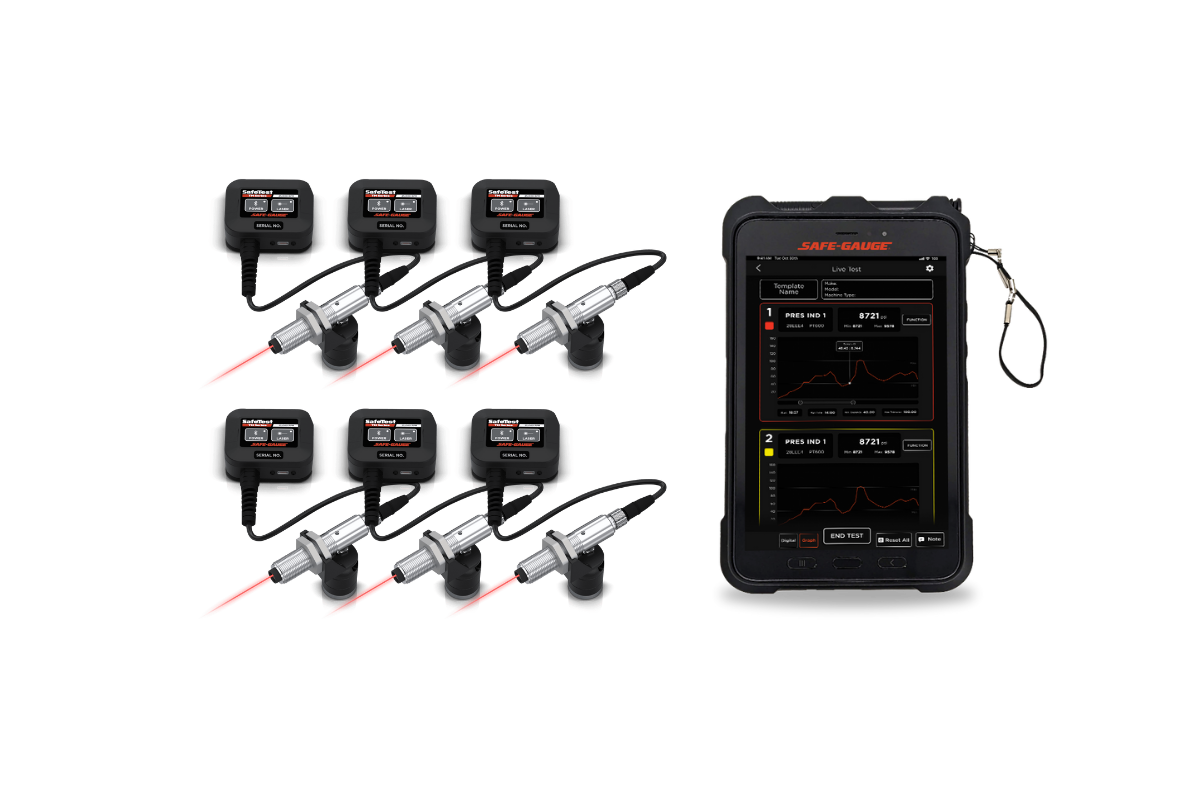

6x Tachometers
1x MultiTool Pro

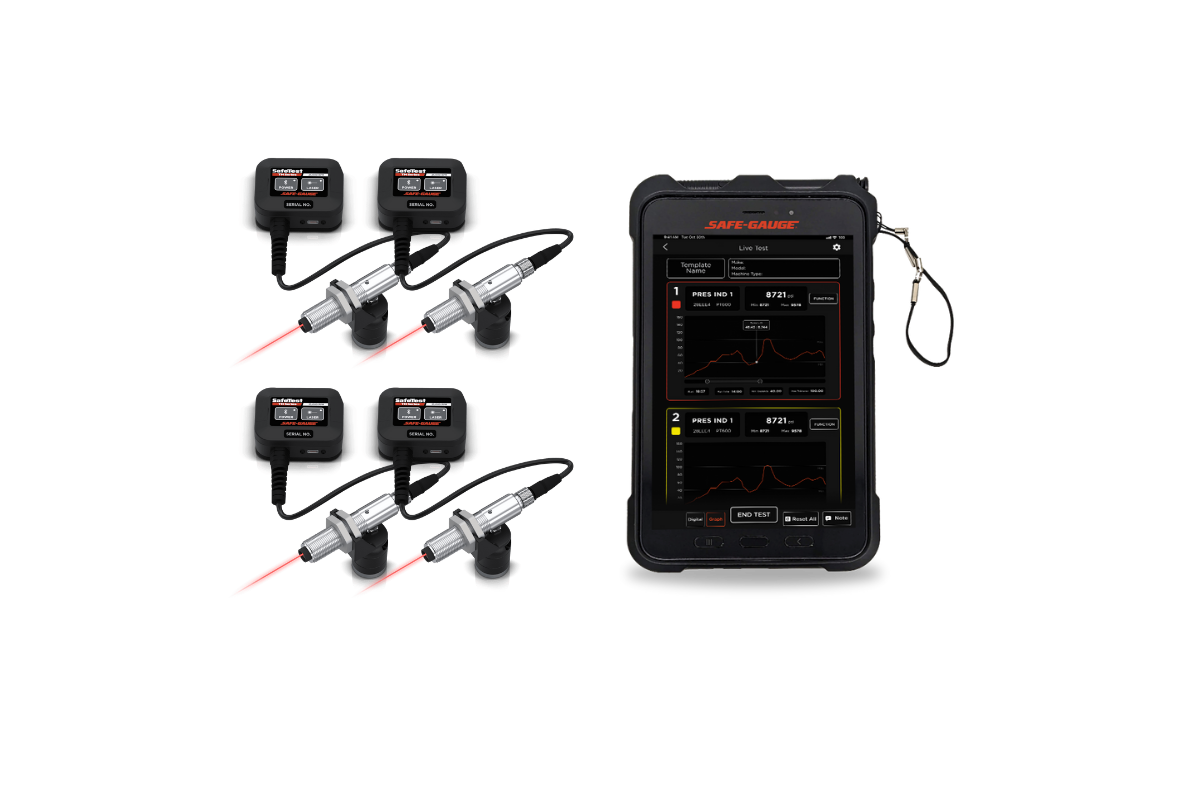

4x Tachometers
1x MultiTool Pro

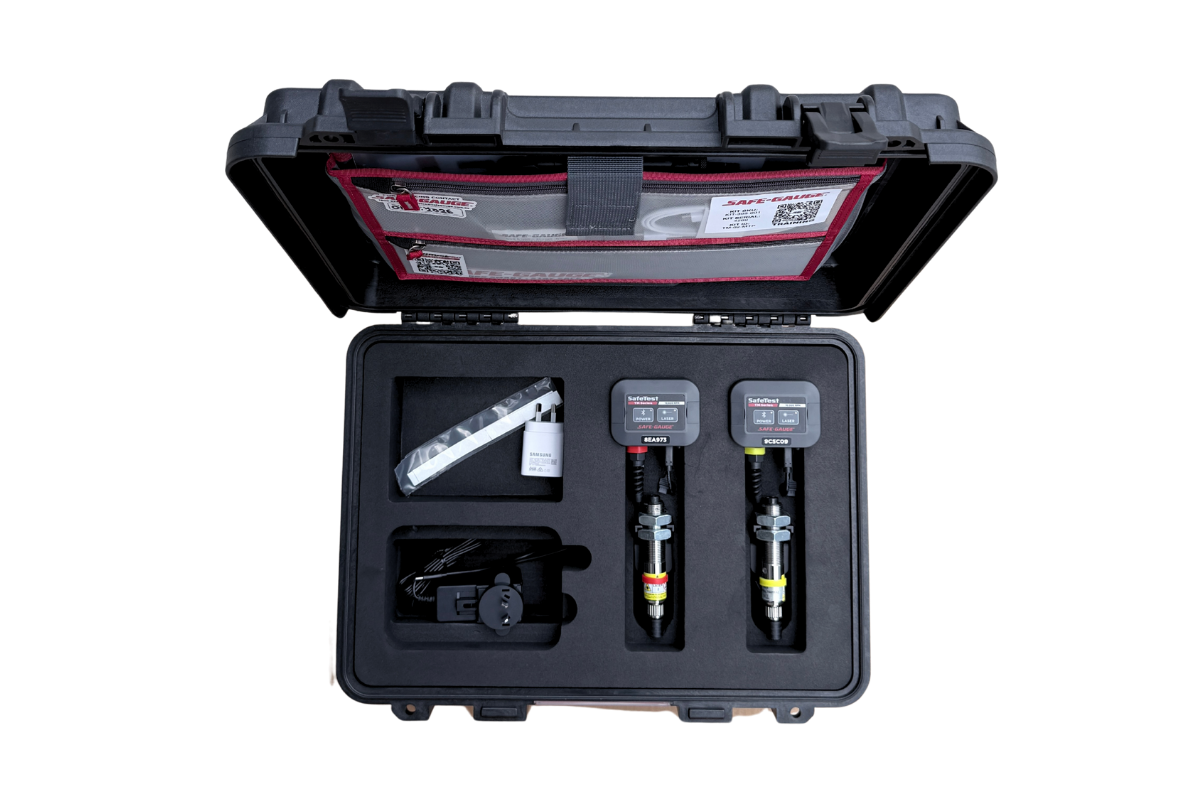

2x Tachometers
1x MultiTool Pro

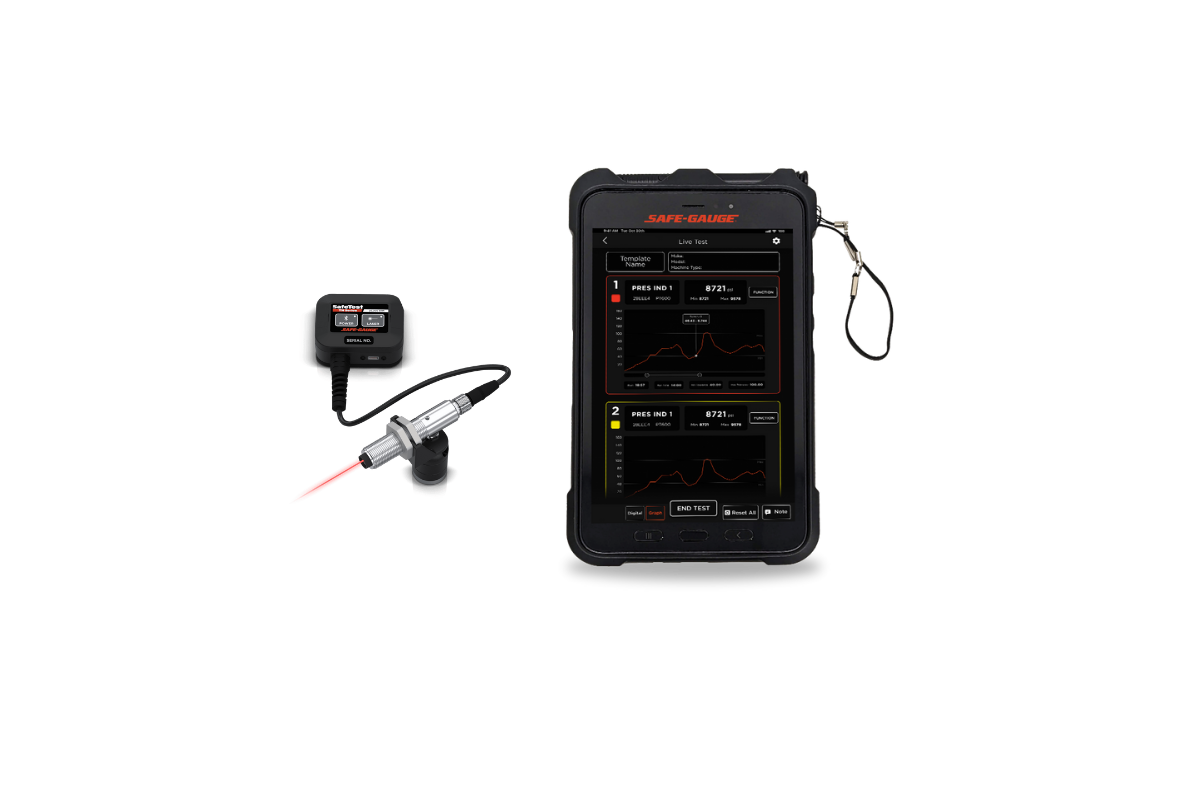

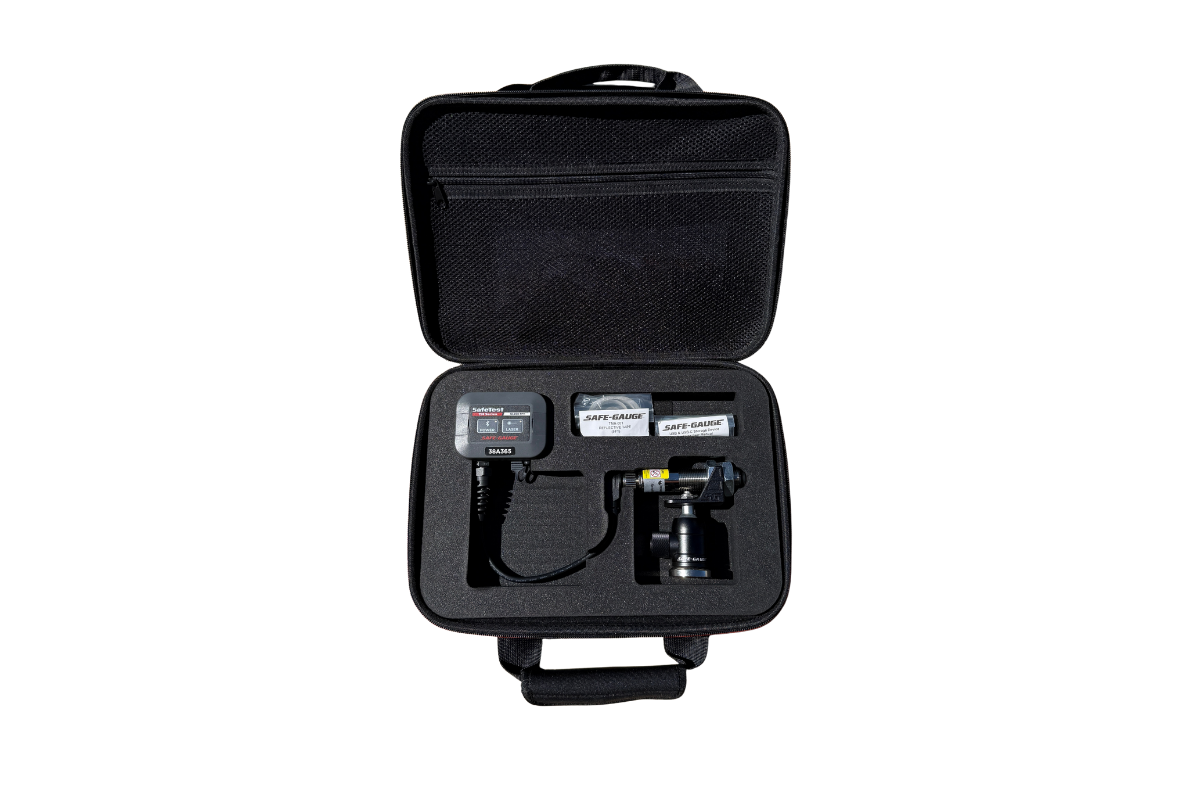

1x Tachometer
1x MultiTool Pro
1x Tachometer
CONFIGURATIONS
Available for purchase online.

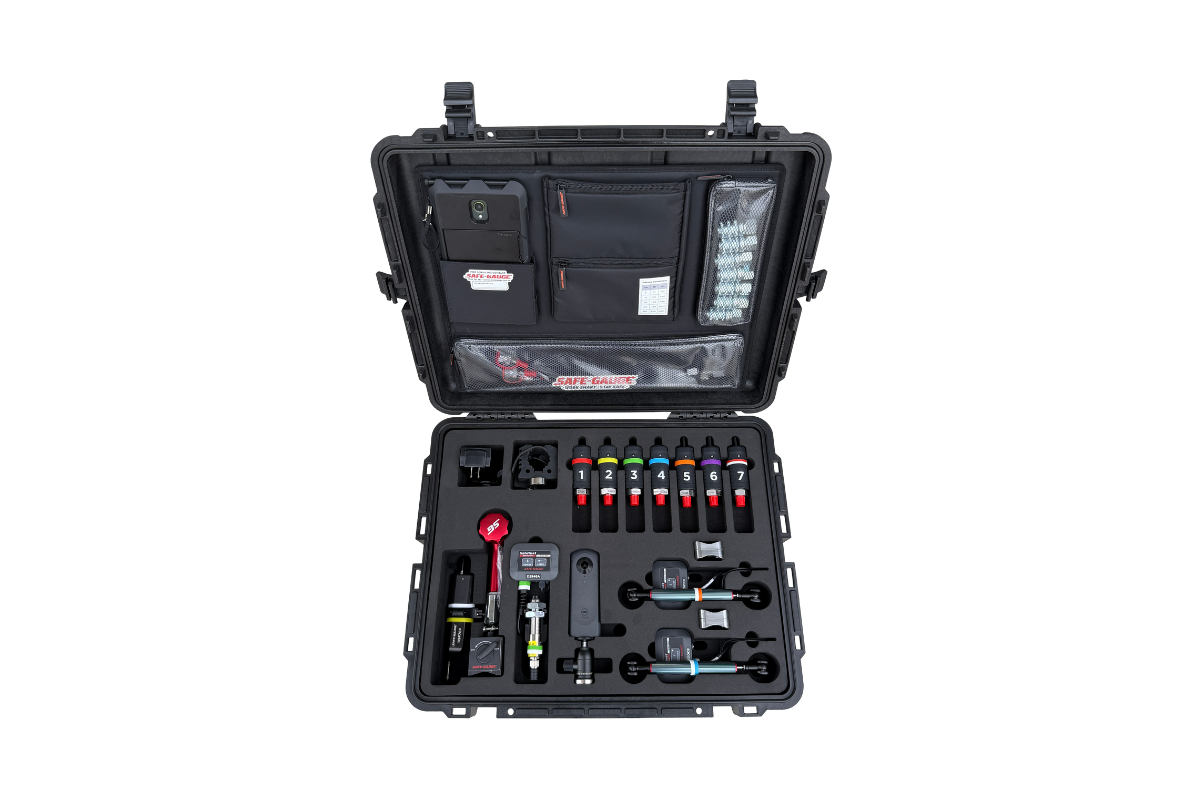

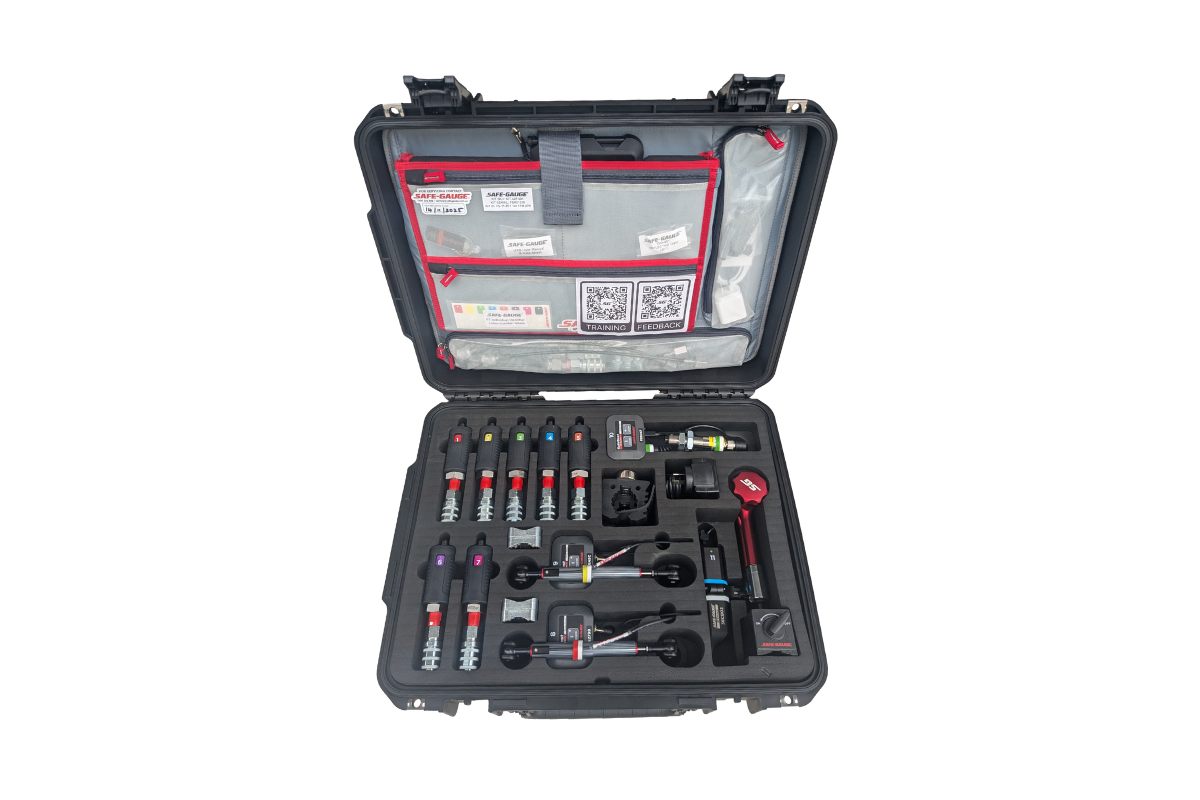

7x Pressure Transducers
1x Dial Indicator
1x Tachometer
2x Push Rods
1x Inspection Camera
1x MultiTool Pro

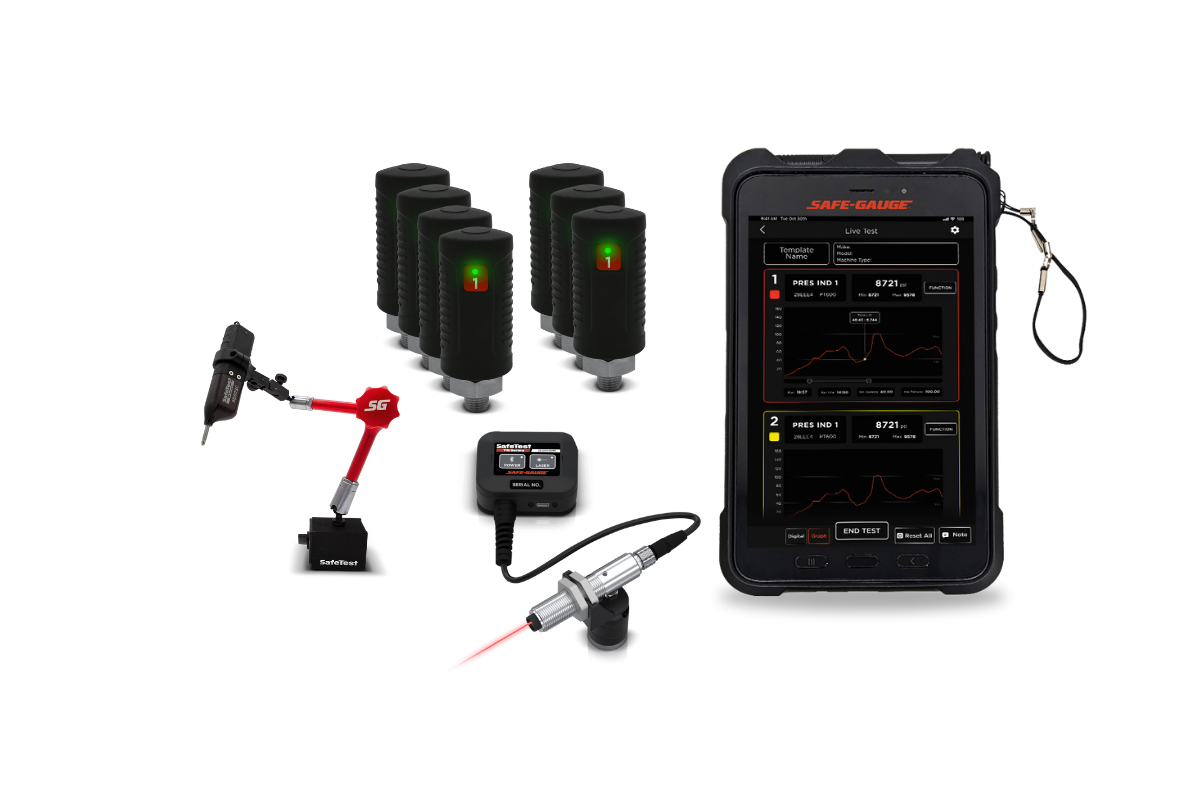

7x Pressure Transducers
1x Dial Indicator
1x Tachometer
2x Push Rods
1x MultiTool Pro
7x Pressure Transducers
1x Dial Indicator
1x Tachometer
1x MultiTool Pro

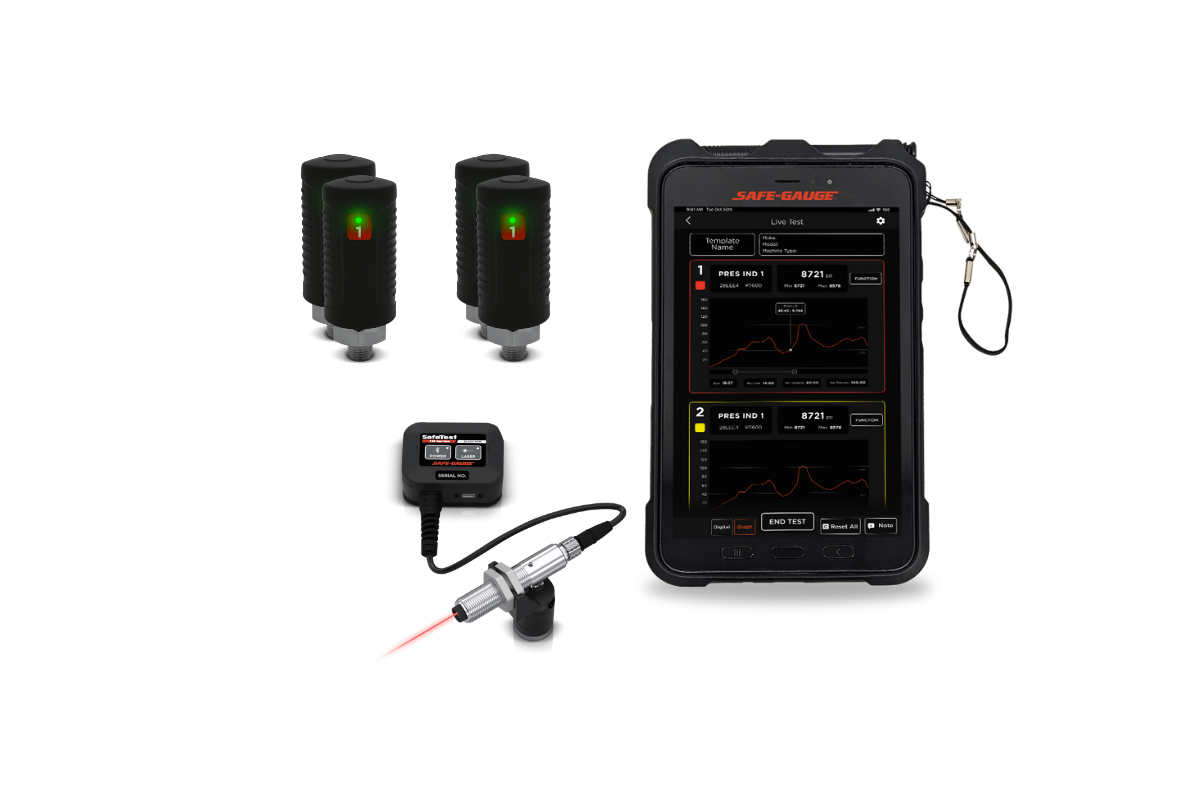

4x Pressure Transducers
1x Tachometer
1x MultiTool Pro

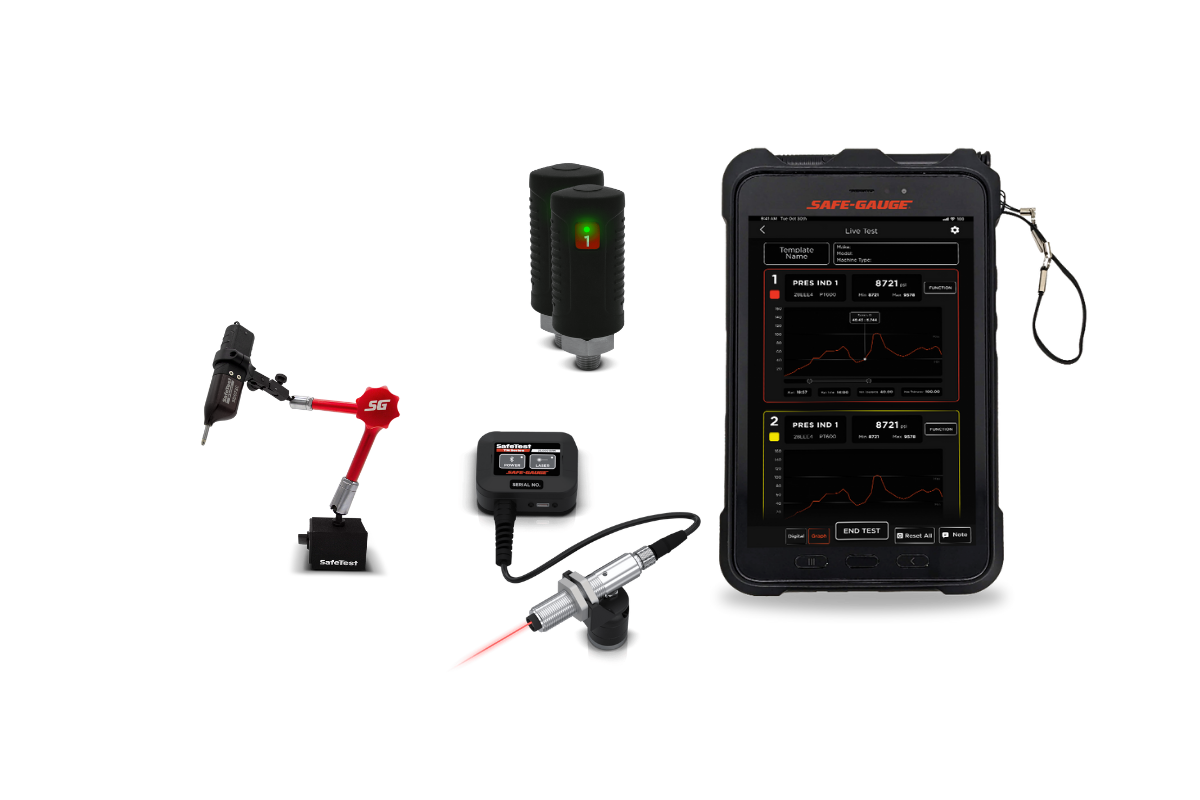

2x Pressure Transducers
1x Dial Indicator
1x Tachometer
1x MultiTool Pro

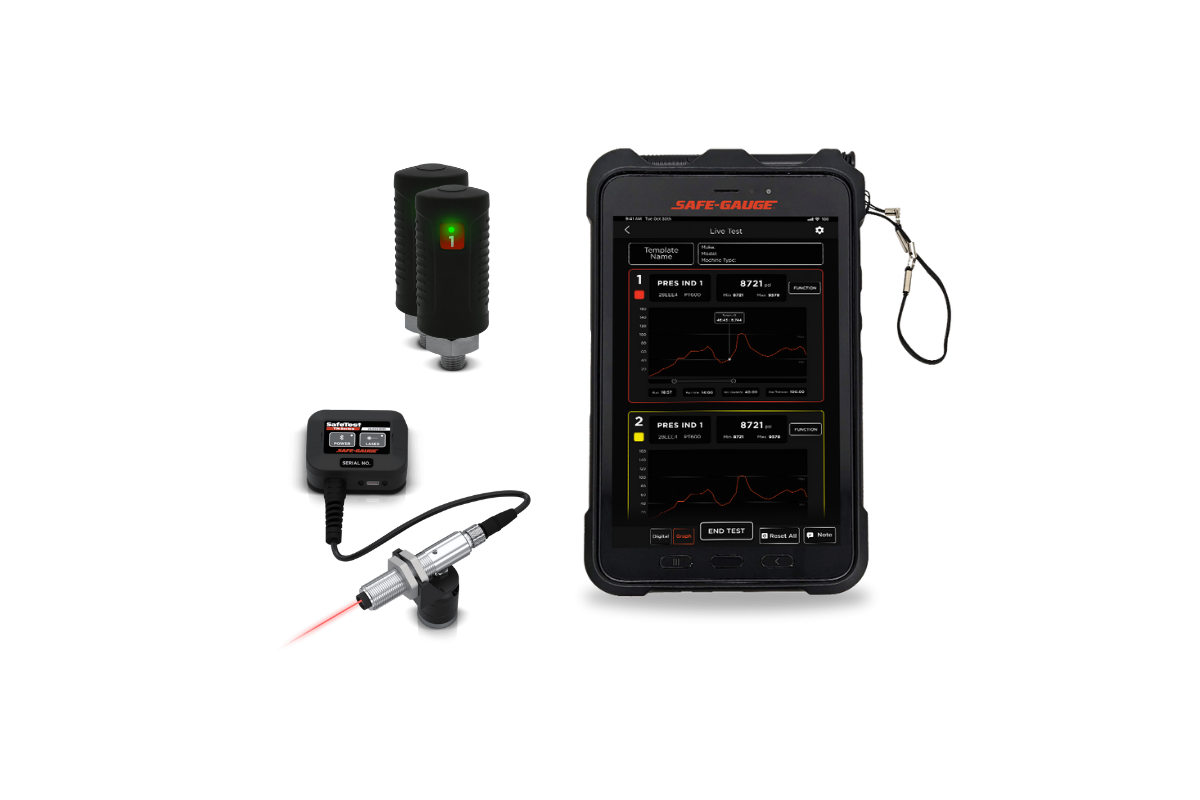

2x Pressure Transducers
1x Tachometer
1x MultiTool Pro
This transducer kit is brilliant! Absolutely better than the other one we have; it was raining the day we completed a transmission test on the 793F. We fitted the transducers and sat in the cab, completed the test quickly and very easily, thanks to the new kit.
WesTrac
Just wanted to say thanks for lending us the latest testing kit for the trial on DT5304. Feedback from the team is that it works well and does what it's meant to do. The transducers have good range. The only request is for some extra transducers in the kit as we have already discussed.
WesTrac
We have mandated SafeGauge Pressure Transducers across our entire site and banned regular pressure gauges entirely. SafeGauge products have made our maintenance procedures significantly safer by entirely removing our techs from exposure to high-risk areas. The implementation has reduced the time it takes to do our regular checks by at least 50%.
WesTrac
The SafeGauge products are a great addition to our tooling inventory. Tooling that removes personnel from the footprint of the machine. It makes the technician's job easier. Dial indicators, again, remove personnel from the footprint of the machine. Eliminates technicians from crush/pinch points.
WesTrac
We now have the SafeGauge Dial Indicator units on-site, and they’re an absolute pleasure to use. We look forward to incorporating this new technology into our existing servicing procedures.
Fortescue
This tooling has almost halved our workload during live testing and the lads love it as it is a lot more user-friendly than the previous tooling we had. Since then, we’ve purchased another kit after the first one we bought. We highly recommend SafeGauge to others for tooling purchases as the tooling is simple, robust, and user-friendly.
Rio TInto
Speed measurements on:
• Engine cooling fans
• Pulleys and belts
• Turbines or other spinning components
The SafeGauge Tachometer has an IP rating of IP67.
Use only with the SafeGauge reflective tape. Available for purchase here.
Up to 100m.
The SafeGauge Tachometer has an operating time of 12 hours.
The SafeGauge Tachometers connect to a SafeGauge display (mobile device using the SafeGauge app, our Wireless Multitool or our Multitool Pro) via Bluetooth.
The SafeGauge Tachometer is secured in position by a magnetic base, pointed at the item being measured, and then locked into place with our adjustable mounting system.
The SafeGauge Tachometer can measure speeds up to 10,000 RPM.
The SafeGauge Tachometer has an accuracy of +/- 0.01% of reading.
The Tachometer can measure from up to 1.5m (4.9ft) away.
The Tachometer should be positioned at an angle between 15° and 45° off the target when taking measurements. This angle range has been tested and verified to deliver reliable and accurate RPM readings.
The laser in our Tachometer is rated a Visible Class 2 laser.
The Tachometer is charged via a USB Type-C charging cable which is included in the kit.
4 hours from zero to fully charged.
Yes, the SafeGauge Tachometer has a 12-month warranty.
Yes, we recommend having your Tachometer serviced and calibrated every 12 months.
Calibration can be carried out by SafeGauge or one of our service partners.
