SafeSwitch

Designed for heavy-diesel mechanics, technicians and fitters, the SafeSwitch lets you remotely and wirelessly change pump positions during hydraulic tune-ups on Liebherr excavators*, without running long cables back to the cab.

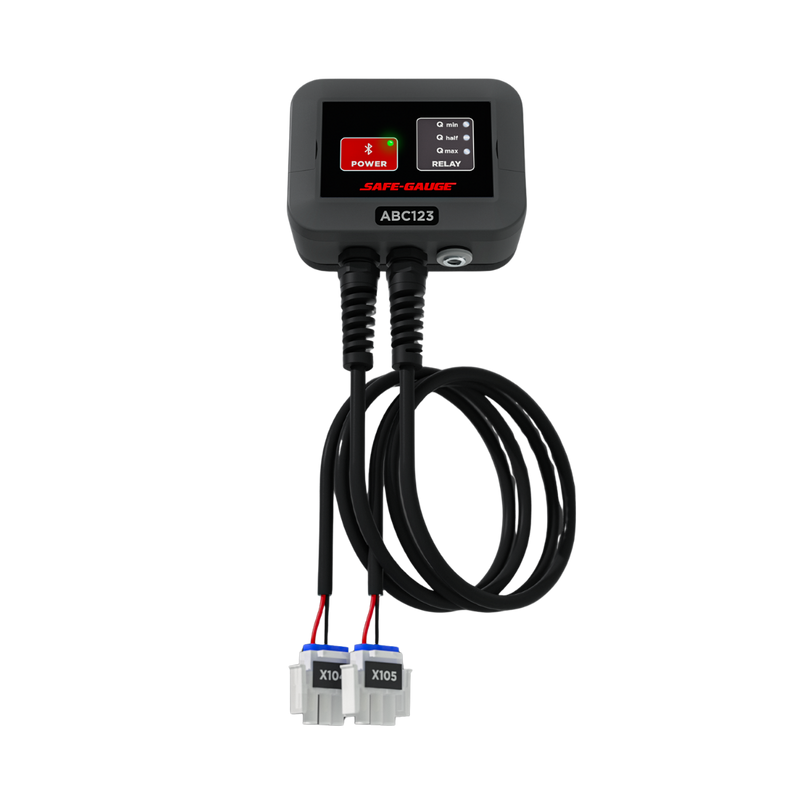

Connecting directly to the X104 and X105 connectors, the SafeSwitch pairs with the MultiTool Pro, which acts as a wireless remote so pump positions can be switched from a safe distance.

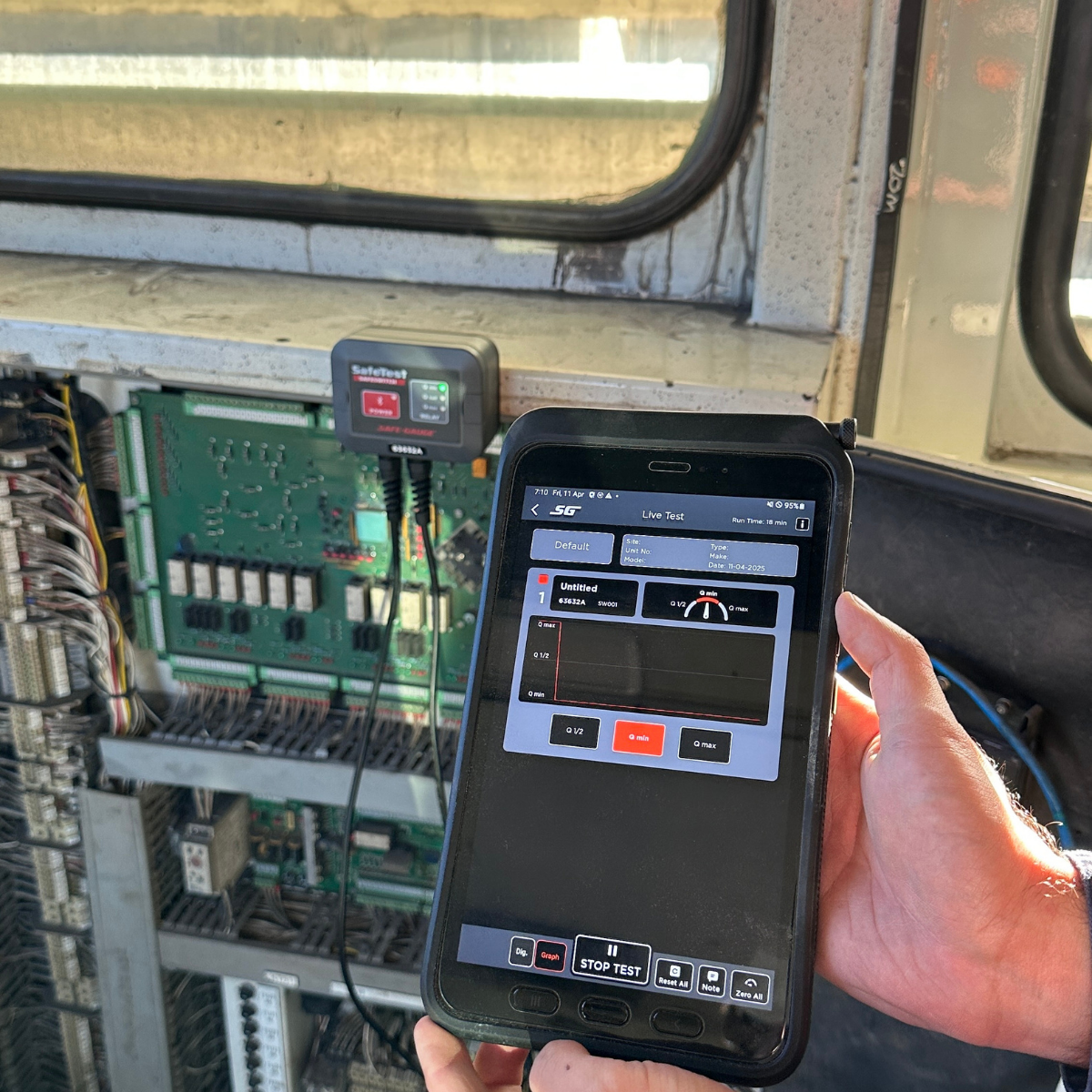

Used alongside SafeGauge Pressure Transducers, technicians can monitor pump pressures and switch between pump positions in real time, all from the MultiTool Pro, keeping people out of high-risk zones while improving efficiency, accuracy and documentation.

Features

  • Eliminate long cables for faster setup and reduced trip hazards
  • Complete hydraulic testing from a safe distance
  • Easily capture Q min, Q half and Q max data in the MultiTool Pro
  • Wireless operation from up to 100m (328ft) away
  • Secure magnetic backing plate
  • IP67-rated rugged design
  • Fast setup
  • Up to 10 hours of battery life
  • Supplied in a hard-shell carry case with built-in charging harness

Electrical Specifications

Power Connector: DC barrel jack
Battery technology: Internal NiMH (Nickel Metal Hydride) pack
Battery life cycle: 1000 cycles
Charging: Charge only with SafeGauge charging case
Charging time: 4 hours
Operating time: 10 hours
Cable length: 1 metre (39in)

Mechanical Specifications

Weight: 390g
Communications box material: ABS plastic
Ingress protection:
IP67
Connector type: Universal Mate-N-Lok Plugs
Mounting options:
1. Magnetic mounting plates on communication box.
2. Fixes to any (ferrous) metal surface

Communication Specifications

Communication type: Bluetooth low energy 2.4GHz
Maximum range: Up to 100m (328ft)
Compatible user interfaces: MultiTool Pro Only

Environmental Specifications

Battery disposal: When finished with a SafeGauge product please return to SafeGauge Pty Ltd for correct recycling, or follow your local area laws and guidelines for correct battery disposal.

Machine Compatibility

Compatible with the Liebherr R 9250 G6, R 9300 G8, R 9350 G6, R 9400 G6, R 9800 G6, and R 996 B.

This product is not compatible with the Liebherr R 9600 G8.

Downloads

SafeSwitch Kits

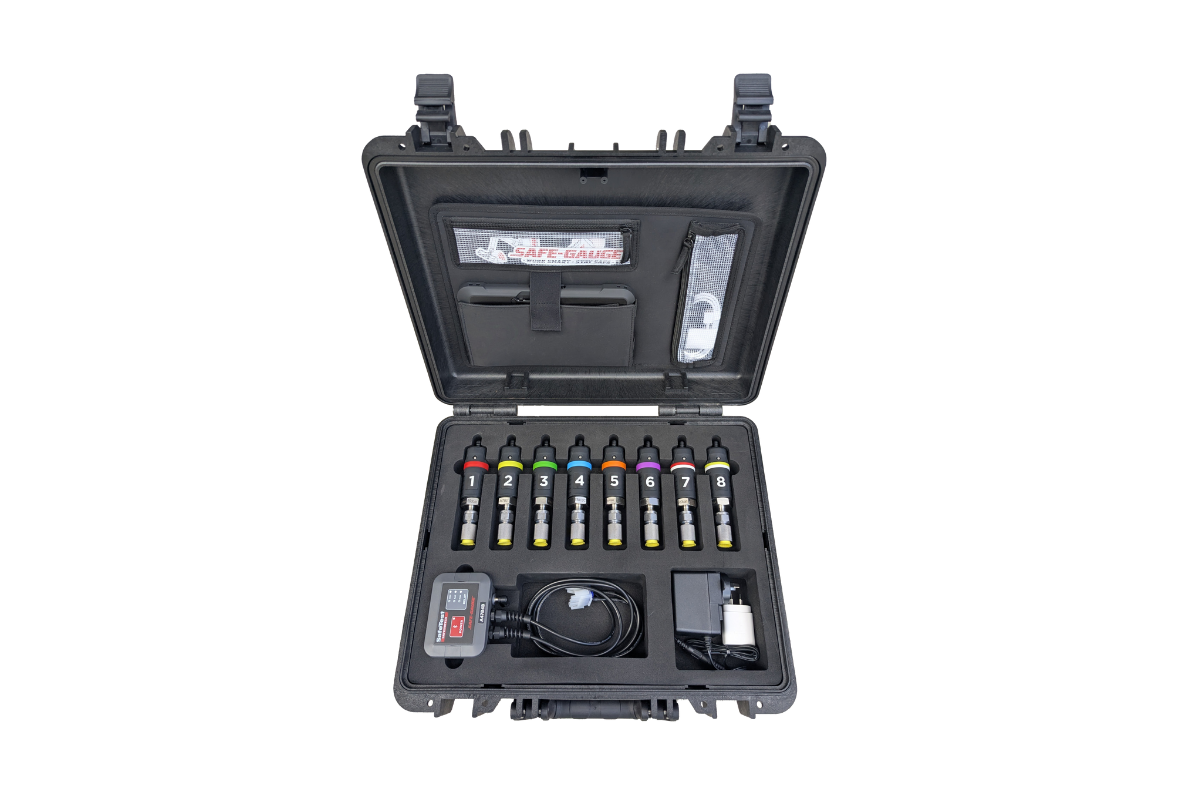

8 Pressure Transducer Kit with SafeSwitch

8x Pressure Transducers
1x SafeSwitch
1x MultiTool Pro

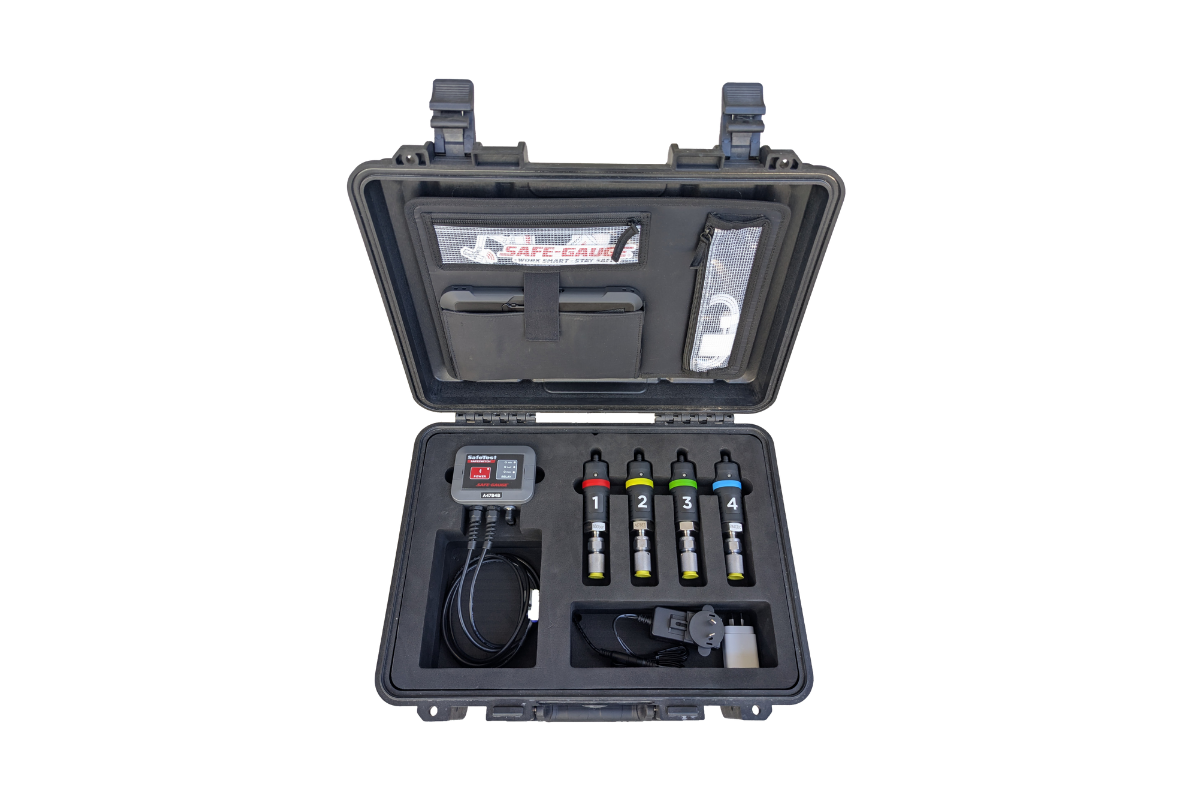

4 Pressure Transducer Kit with SafeSwitch

4x Pressure Transducers
1x SafeSwitch
1x MultiTool Pro

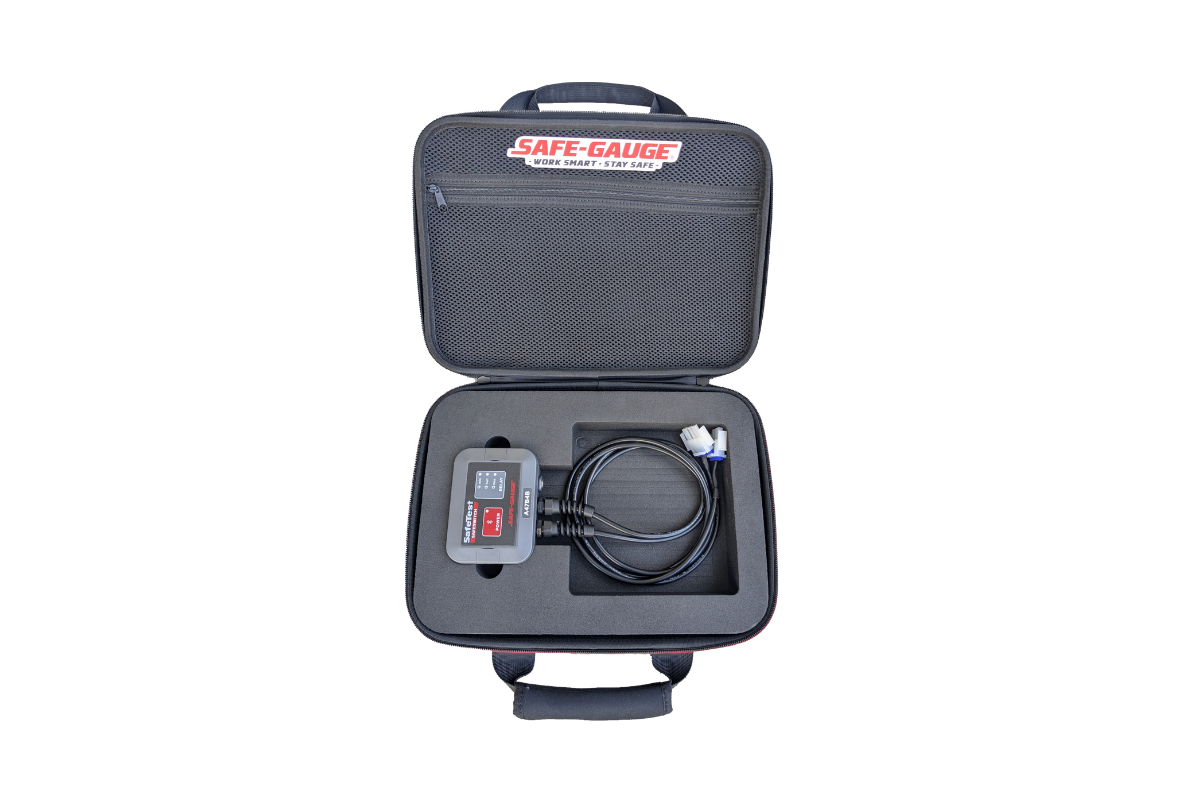

1 SafeSwitch

1x SafeSwitch
1x MultiTool Pro

TESTIMONIALS

The SafeGauge products are a great addition to our tooling inventory. Tooling that removes personnel from the footprint of the machine. It makes the technician's job easier. Dial indicators, again, remove personnel from the footprint of the machine. Eliminates technicians from crush/pinch points.

This tooling has almost halved our workload during live testing and the lads love it as it is a lot more user-friendly than the previous tooling we had. Since then, we’ve purchased another kit after the first one we bought. We highly recommend SafeGauge to others for tooling purchases as the tooling is simple, robust, and user-friendly.

We have mandated SafeGauge Pressure Transducers across our entire site and banned regular pressure gauges entirely. SafeGauge products have made our maintenance procedures significantly safer by entirely removing our techs from exposure to high-risk areas. The implementation has reduced the time it takes to do our regular checks by at least 50%.

We now have the SafeGauge Dial Indicator units on-site, and they’re an absolute pleasure to use. We look forward to incorporating this new technology into our existing servicing procedures.

Just wanted to say thanks for lending us the latest testing kit for the trial on DT5304. Feedback from the team is that it works well and does what it's meant to do. The transducers have good range. The only request is for some extra transducers in the kit as we have already discussed.

This transducer kit is brilliant! Absolutely better than the other one we have; it was raining the day we completed a transmission test on the 793F. We fitted the transducers and sat in the cab, completed the test quickly and very easily, thanks to the new kit.

Frequently Asked
Questions

What machines is the SafeSwitch compatible with?

The SafeSwitch is compatible with the Liebherr R 9250 G6, R 9300 G8, R 9350 G6, R 9400 G6, R 9800 G6, and R 996 B.

This product is not compatible with the Liebherr R 9600 G8.

Which SafeGauge displays is the SafeSwitch compatible with?

The SafeSwitch is compatible with the MultiTool Pro. Not currently for use with the SafeGauge Mobile App or Wireless MultiTool.

Get wireless pump position switching for safer, faster hydraulic tune-ups.

See how our wireless SafeSwitch can help your operation improve safety and simplify documentation.
